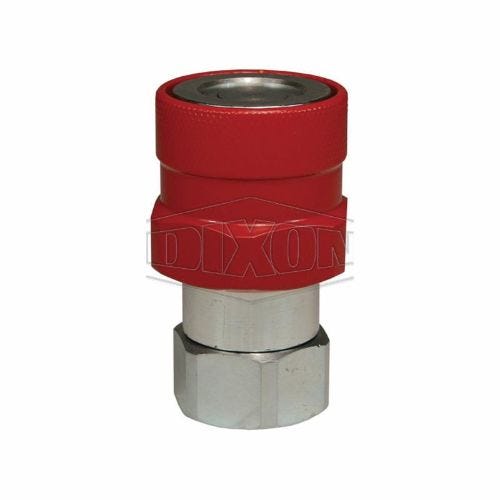

Dixon® 12VEPF12-BOP DQC VEP-BOP Blowout Preventer Safety Female Coupler, 1-1/2-11-1/2 Nominal, Female NPTF, Steel
Manufacturer #12VEPF12-BOP
In stock
$1,009.32
$1,009.32
Quantity Break Pricing may apply in the cart
HSI
12VEPF12-BOP-10639
Dixon® 12VEPF12-BOP DQC VEP-BOP Blowout Preventer Safety Female Coupler, 1-1/2-11-1/2 Nominal, Female NPTF, Steel is available to buy in increments of 1
Product Overview
Dixon® Blowout Preventer Safety Female Coupler, Series: DQC VEP-BOP, 1-1/2-11-1/2 Nominal, Female NPTF, 63 mm Hex, 5.28 in Length, 5000 psi, 1300°F, Steel, Nickel Plated Zinc, 3.74 in OD
Features
- Machined components are manufactured using solid steel bar stock
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel components are plated using ROHS compliant zinc nickel
- Red powder coated components and external O-rings for easy BOP service identification
- Blow-out preventer coupling critical seals are severe service FKM
- PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 1-1/2 in body
- Compatible with Stucchi VEP/VEP-HD series, DNP FSI-BOP series
- 5,800 psi maximum impulse pressure
- 18,000 psi burst pressure connected
- 12,000 psi burst pressure coupler
- 3000 psi maximum pressure connect and disconnect
- 5,000 psi Lloyd's test pressure
- Designed specifically for blow-out preventer systems on drilling rigs
Specifications
| Manufacturer Part Number | 12VEPF12-BOP |
|---|---|
| Manufacturer | Dixon Valve & Coupling |
| Brands | DIXON |
| Length (in) | 5.28 |
| Height (in) | 3.74 |
| Standard Approvals |
|
| Nominal Size | 1-1/2 in - 11-1/2 |
| Hex Size | 63 mm |
| Finish | Nickel Plated Zinc |
| Material | Steel |
| Temperature Rating | 1300°F |
| Package Quantity | 1/Each |
