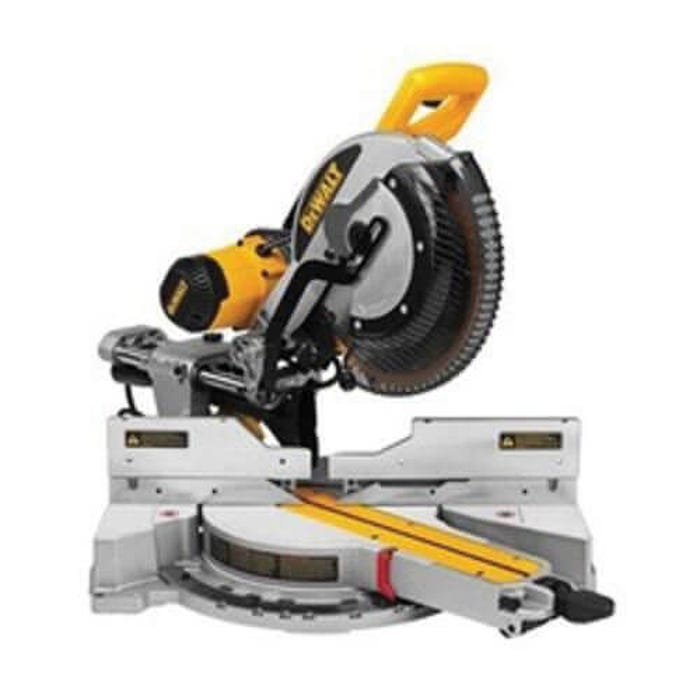

DeWALT® DWS780 Double Bevel Sliding Compound Miter Saw, 12 in dia Blade, 5/8 in, 1 in Arbor/Shank, 4-1/2 in H x 9-1/2 in W at 45°

DEWALT

Manufacturer #DWS780

Call for availability

Be the first to review this product

$649.00

Quantity Break Pricing may apply in the cart

HSI

TEL45370

UPC #:885911231602

DeWALT® DWS780 Double Bevel Sliding Compound Miter Saw, 12 in dia Blade, 5/8 in, 1 in Arbor/Shank, 4-1/2 in H x 9-1/2 in W at 45° is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

DeWALT® Compound Miter Saw, Double Bevel Sliding, Bare Tool, 12 in dia Blade, 5/8 in, 1 in Arbor/Shank, 3800 RPM Speed, Cutting Capacity: 4-1/2 in H x 9-1/2 in W at 45°, 4-1/2 in H x 13-3/4 in W at 90°, 45/90°Cutting Angle, Miter Capacity: 50 to 60°, Bevel Capacity: 49°, Bevel Stops: 9°, 120 VAC, 15 A, Aluminum Housing Material, Cam Action Miter Lock Handle, 6 ft Cord, 19-3/4 in H x 30-1/2 in W x 23-1/2 in D Dimensions.

Features

Integrated XPS cross-cut positioning system provides adjustment-free cut line indication for better accuracy and visibility
Powerful motor delivers extended power and durability
Super efficient dust collection system captures over 75% of dust generated
Tall sliding fences support crown molding up to 7-1/2 in nested and base molding up to 6-3/4 in vertically against the fence while easily sliding out of the way for bevel cuts
Exclusive back fence design cuts up to 2 x 16 dimensional lumber at 90° and 2 x 12 at 45°
Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
Miters 60° to the right and 50° to the left providing increased capacity
Oversized bevel scale makes bevel angle adjustments accurate and easy
Compact, lightweight design allows for easy transport and storage
Cam lock Miter handle with detent override deliver quick and accurate Miter angles
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
Innovative gearbox and belt-drive design increases vertical cutting capacity
Precise miter system and machined base fence support optimize durability and cutting accuracy

Specifications

More Information
Manufacturer Part Number	DWS780
Manufacturer	Stanley Black & Decker
Brands	DEWALT
UPC	885911231602
Length (in)	19.75
Width (in)	30.5
Height (in)	23.5
Product Type	Bare Tool
Standard Approvals	1-UL Listed
Includes	Dust Bag, Blade Wrench and Vertical Material Clamp
Type	Double Bevel Sliding
Handle Type	Cam Action Miter Lock
Voltage	120V AC
Speed	3800 RPM
Arbor/Shank Size	5/8 in, 1 in
Package Quantity	1/Each
