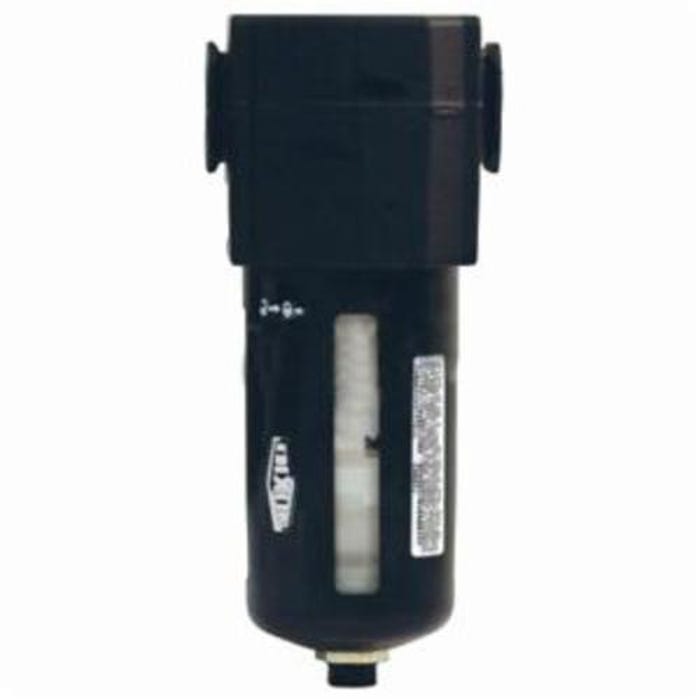

Norgren® by Dixon® F74G-4M Excelon® General Purpose Standard Compressed Air Filter with 1/4 Turn Manual Drain and Bowl Guard, 1/2 in PTF Port

DIXON

Manufacturer #F74G-4M

Call for availability

Be the first to review this product

List Price: $158.11

$158.11

Quantity Break Pricing may apply in the cart

HSI

F74G-4M-10639

Norgren® by Dixon® F74G-4M Excelon® General Purpose Standard Compressed Air Filter with 1/4 Turn Manual Drain and Bowl Guard, 1/2 in PTF Port is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Norgren® by Dixon® Compressed Air Filter, General Purpose Standard, Series: Excelon® Series 1 F74G, 1/2 in PTF Port, 140 scfm, 40 micron Filter, 150 psig Pressure, -30 to 125°F, Polycarbonate Bowl, Aluminum

Features

Excelon® design allows in-line installation or modular installation with other Excelon® products
Quick-release bayonet bowl
Prismatic lens liquid level indicator
Sintered polypropylene filter element
Neoprene® elastomers
High efficiency water and particle removal
Optional service life indicator turns from green to red when the filter element needs to be replaced
Modular installations with Excelon® 72, 73 and 74 series can be made to suit particular applications
Without service life indicator

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

More Information
Manufacturer Part Number	F74G-4M
Manufacturer	Dixon Valve & Coupling
Brand Name	DIXON
Standard Approvals	RoHS Compliant UL Listed ISO 8573-1 Class 5 Class 3
Type	General Purpose Standard
Warranty	Limited
Port Size	1/2 in PTF
Material	Aluminum
Temperature Rating	-30 to 125°F
Package Quantity	1/Each
