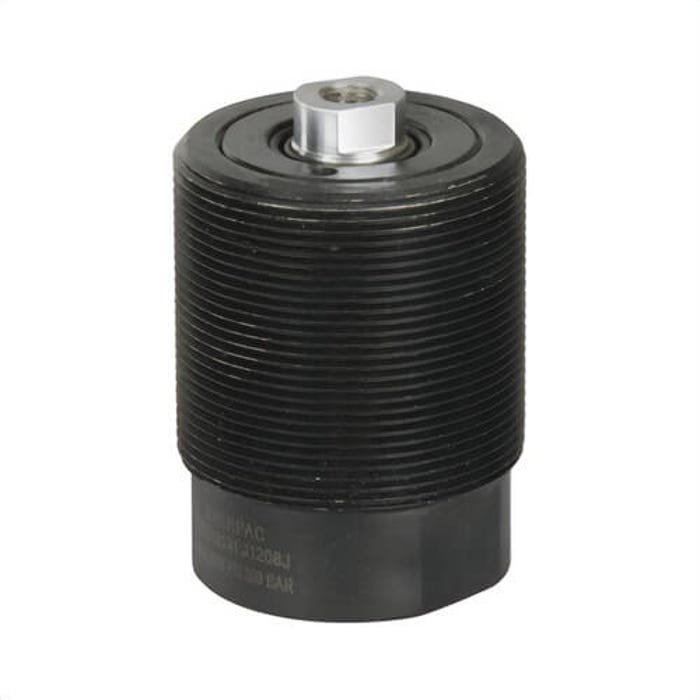

Enerpac® CDT18132 Threaded Hydraulic Cylinder, 13 mm Stroke Length, 17.2 kN Advance, 10.4 kN
Manufacturer #CDT18132
Call for availability
List Price:
$332.00
$332.00
Quantity Break Pricing may apply in the cart
HSI
CDT18132-10764
UPC #:662005127733
Enerpac® CDT18132 Threaded Hydraulic Cylinder, 13 mm Stroke Length, 17.2 kN Advance, 10.4 kN is available to buy in increments of 1
Product Overview
Enerpac® hydraulic cylinder, threaded, CDT series, 13 mm stroke length, 17.2 kN advance, 10.4 kN retract maximum force, function: double-acting, hydraulic return, G1/4 port, 81 mm extended height, 68 mm retracted height, M48 x 1.5 body thread, M8 x 1.25 plunger thread, 350 bar pressure.
Features
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows exact positioning and easy installation
- Internal plunger wipers allow maintenance-free, high cycle performance
- Center tapped plungers will hold workpiece contact buttons
- Double-acting models are recommended for high cycle applications
Specifications
| Manufacturer Part Number | CDT18132 |
|---|---|
| Manufacturer | Enerpac Tool Group |
| Brand Name | ENERPAC |
| UPC | 662005127733 |
| Length (in) | 7 |
| Width (in) | 3 |
| Height (in) | 3 |
| Warranty | Limited |
| Package Quantity | 1/Each |
