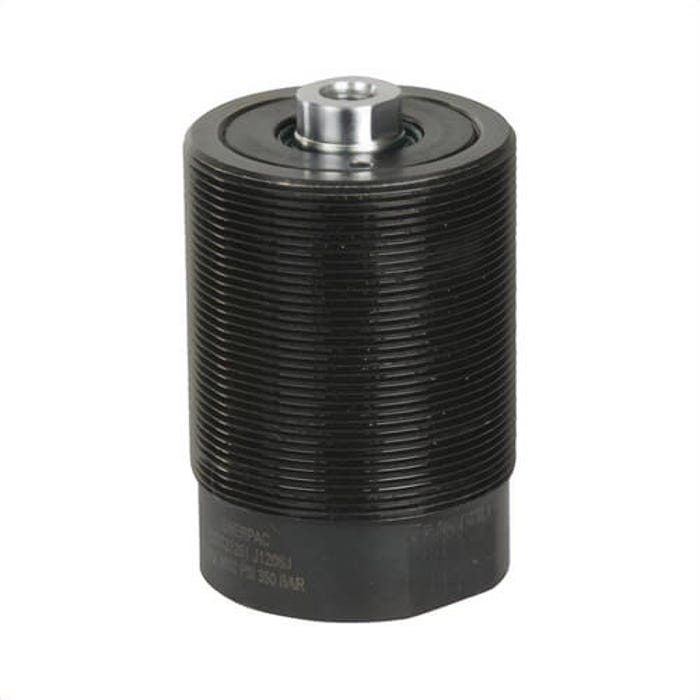

Enerpac® CDT27151 Solid Plunger Threaded Hydraulic Cylinder, 0.57 in Stroke Length, 6,110 lb Advance, 4,080 lb
Manufacturer #CDT27151
Call for availability
List Price:
$400.00
$400.00
Quantity Break Pricing may apply in the cart
HSI
CDT27151-10764
UPC #:662005125586
Enerpac® CDT27151 Solid Plunger Threaded Hydraulic Cylinder, 0.57 in Stroke Length, 6,110 lb Advance, 4,080 lb is available to buy in increments of 1
Product Overview
Enerpac® hydraulic cylinder, solid plunger threaded, CDT series, 0.57 in stroke length, 6,110 lb advance, 4,080 lb retract maximum force, function: double-acting, hydraulic return, #4 port, 3.37 in extended height, 2.8 in retracted height, 2-1/8-16 UN body thread, 3/8-16 UNC plunger thread, 5,000 psi pressure, steel.
Features
- Minimum cylinder diameter combined with maximized clamping forces
- Threaded body allows exact positioning and easy installation
- Internal plunger wipers allow maintenance-free, high cycle performance
- Center tapped plungers will hold workpiece contact buttons
- Double-acting models are recommended for high cycle applications
Specifications
Manufacturer Part Number | CDT27151 |
---|---|
Manufacturer | Enerpac Tool Group |
Brand Name | ENERPAC |
UPC | 662005125586 |
Length (in) | 4 |
Width (in) | 4 |
Height (in) | 3 |
Warranty | Limited |
Package Quantity | 1/Each |
