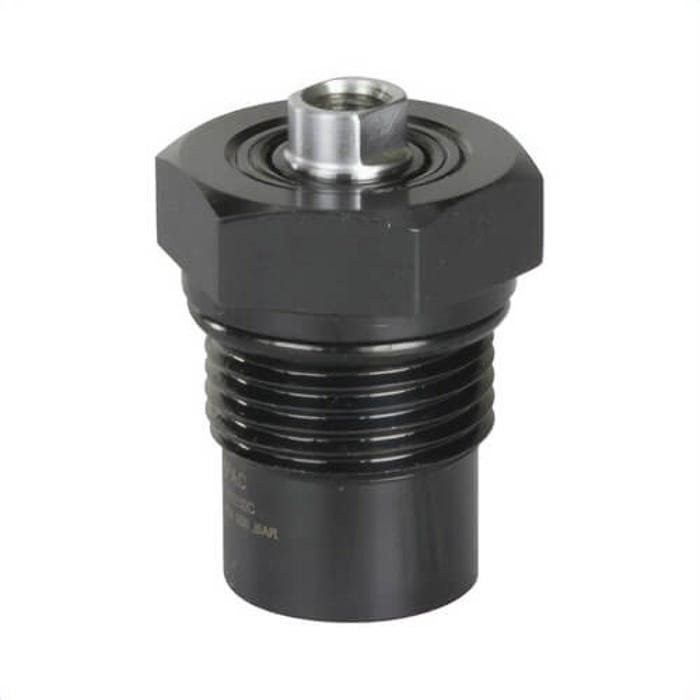

Enerpac® CSM1071 Manifold Mounted Solid Plunger Hydraulic Cylinder, 0.28 in Stroke Length, 2,590 lb
Manufacturer #CSM1071
Call for availability
List Price:
$278.00
$278.00
Quantity Break Pricing may apply in the cart
HSI
CSM1071-10764
UPC #:662005133345
Enerpac® CSM1071 Manifold Mounted Solid Plunger Hydraulic Cylinder, 0.28 in Stroke Length, 2,590 lb is available to buy in increments of 1
Product Overview
Enerpac® hydraulic cylinder, manifold mounted solid plunger, CSM series, 0.28 in stroke length, 2,590 lb advance maximum force, function: single-acting/spring return, 2.15 in extended height, 1.87 in retracted height, 1.062-12 UN body thread, 0.313-24 UN plunger thread, 5,000 psi pressure, steel.
Features
- Design eliminates the need for fittings and tubing, minimizing space requirements and facilitating easy removal of chips and dirt
- Minimal cylinder height enables extremely compact fixture designs
- High strength bodies and internal plunger wipers allow maintenance-free, high cycle performance
- Center tapped plungers will hold workpiece contact buttons
- Standard SAE bodies make manifold cavity preparation easy
Specifications
| Manufacturer Part Number | CSM1071 |
|---|---|
| Manufacturer | Enerpac Tool Group |
| Brand Name | ENERPAC |
| UPC | 662005133345 |
| Length (in) | 5 |
| Width (in) | 4 |
| Height (in) | 4 |
| Warranty | Limited |
| Package Quantity | 1/Each |
