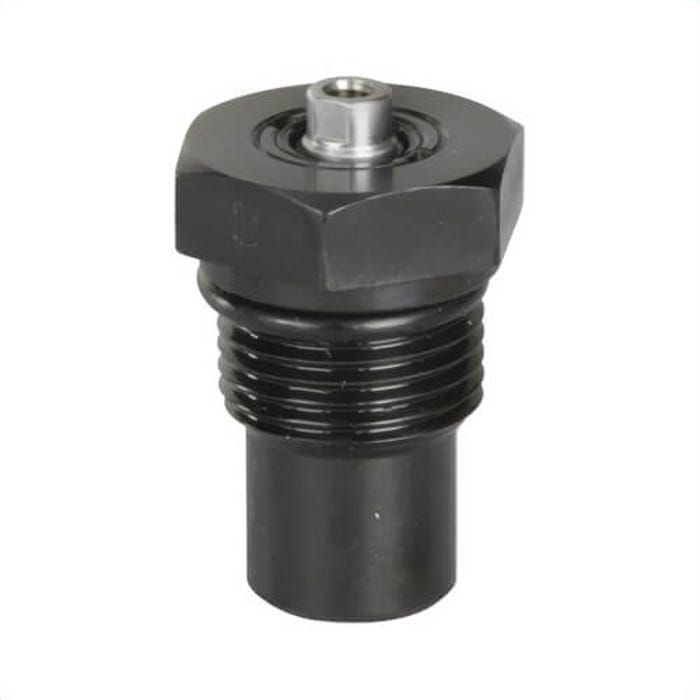

Enerpac® CSM572 Manifold Mounted Hydraulic Cylinder, 7 mm Stroke Length, 5.3 kN

ENERPAC

Manufacturer #CSM572

Call for availability

Be the first to review this product

List Price: $182.00

$182.00

Quantity Break Pricing may apply in the cart

HSI

CSM572-10764

UPC #:662005127818

Enerpac® CSM572 Manifold Mounted Hydraulic Cylinder, 7 mm Stroke Length, 5.3 kN is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Enerpac® hydraulic cylinder, manifold mounted, CSM series, 7 mm stroke length, 5.3 kN advance maximum force, function: single-acting/spring return, 23.5 mm extended height, 16.5 mm retracted height, M20 x 1.5 body thread, M4 x 0.7 plunger thread, 350 bar pressure.

Features

Design eliminates the need for fittings and tubing, minimizing space requirements and facilitating easy removal of chips and dirt
Minimal cylinder height enables extremely compact fixture designs
High strength bodies and internal plunger wipers allow maintenance-free, high cycle performance
Center tapped plungers will hold workpiece contact buttons
Standard SAE bodies make manifold cavity preparation easy

Specifications

More Information
Manufacturer Part Number	CSM572
Manufacturer	Enerpac Tool Group
Brand Name	ENERPAC
UPC	662005127818
Length (in)	2
Width (in)	7
Height (in)	3
Warranty	Limited
Package Quantity	1/Each
