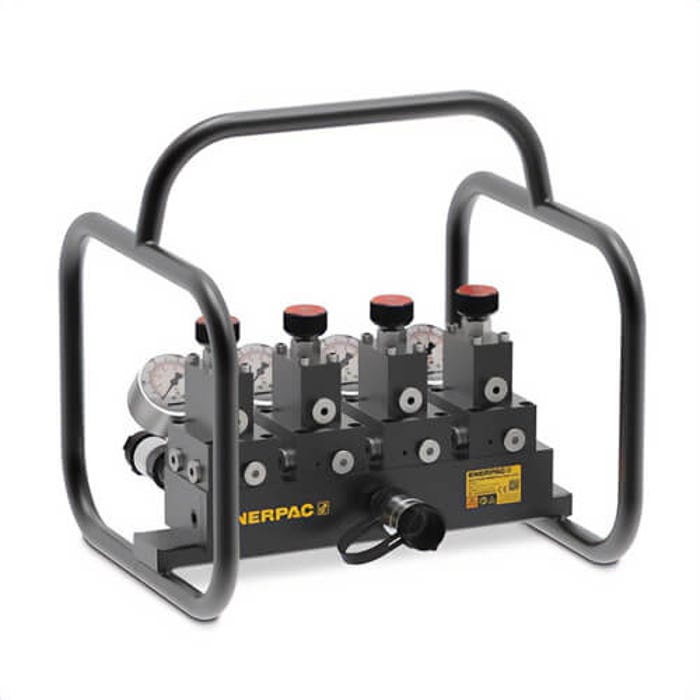

Enerpac® SFM41 Split Flow Hydraulic Manifold Assembly with Gauge and Frame

Manufacturer #SFM41

Call for availability

List Price: $9,564.00

$9,564.00

Quantity Break Pricing may apply in the cart

HSI

SFM41-10764

UPC #:662005428359

Enerpac® SFM41 Split Flow Hydraulic Manifold Assembly with Gauge and Frame is available to buy in increments of 1

Product Overview

Enerpac® hydraulic manifold assembly, split flow, SFM series, 10,000 psi pressure, for use with: single-acting cylinder, 14.6 in L x 13.2 in W.

Features

Split flow manifolds improve safety, precision and control in lifting and lowering operations
Pressure gauge, flow control valve in each outlet port, CR400 couplers installed in each inlet and outlet port
Regulates both advance and retract speeds, lifting and lowering
One inlet, four outlets, maximum of four 4 single-acting cylinders per manifold
Maximum difference among outlets - 10% of the stroke
More cylinders can be controlled simultaneously by connecting several SFM models parallel
