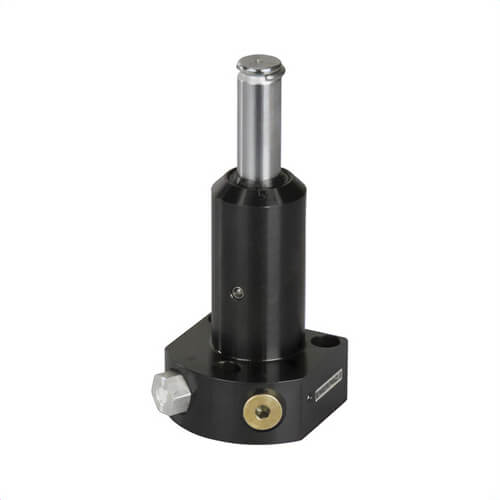

Enerpac® SLLS21 Lower Flange Mounted Swing Clamp Cylinder with CAS-21 Standard Clamp Arm, 0.65 in Stroke Length, 500 lb

ENERPAC

Manufacturer #SLLS21

Call for availability

Be the first to review this product

$572.66

Quantity Break Pricing may apply in the cart

HSI

SLLS21-10764

UPC #:662005308347

Enerpac® SLLS21 Lower Flange Mounted Swing Clamp Cylinder with CAS-21 Standard Clamp Arm, 0.65 in Stroke Length, 500 lb is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Enerpac® swing clamp cylinder, lower flange mounted, SL series, 0.65 in stroke length, 500 lb maximum force, function: single-acting, 90° swivel, left swivel direction, #2 port, 12 in³/min maximum oil flow, 0.12 in² effective area clamped, 0.08 in³ oil capacity clamped, 4.41 in extended height, 500 to 5,000 psi pressure, 3 bolts, #10-32 UNF bolt, 0.23 in dia mounting hole.

Features

Flexible design allows for manifold or threaded oil port connection
No fixture hole preparation required
Easiest mounting preparation in the swing cylinder line
Symmetrical rectangular flange design enables clamping at three sides of the cylinder
Allows extra large parts to be clamped
Enerpac® lower flange series swing clamps can be bolted to the fixture, allowing easy installation of the unit and does not require machined fixture holes
Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated o-ring ports

Specifications

More Information
Manufacturer Part Number	SLLS21
Manufacturer	Enerpac Tool Group
Brands	ENERPAC
UPC	662005308347
Length (in)	4
Width (in)	5
Height (in)	4
Warranty	Limited
Package Quantity	1/Each
