Enerpac® SLSD121 Lower Flange Mounted Swing Clamp Cylinder with CAS-121 Standard Clamp Arm, 1.1 in Stroke Length, 2,600 lb
Manufacturer #SLSD121
Call for availability
List Price:
$778.00
$778.00
Quantity Break Pricing may apply in the cart
HSI
SLSD121-10764
UPC #:662005308477

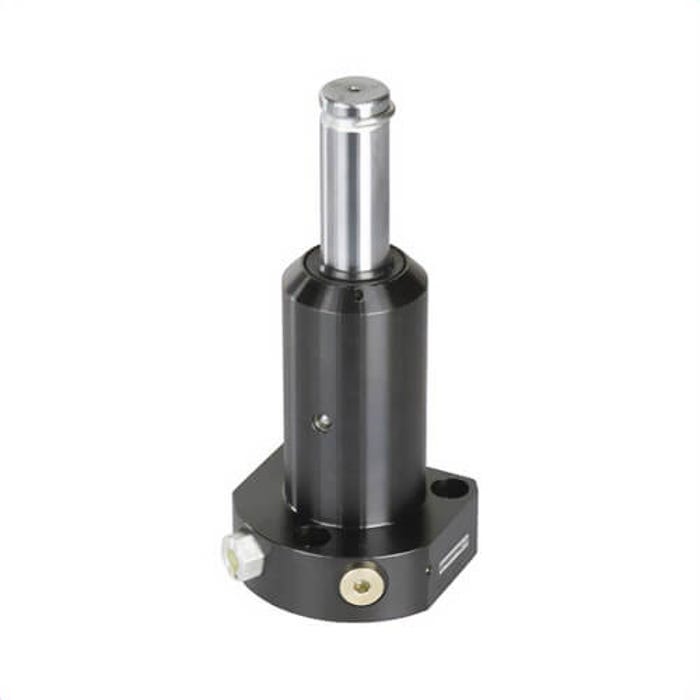

Enerpac® SLSD121 Lower Flange Mounted Swing Clamp Cylinder with CAS-121 Standard Clamp Arm, 1.1 in Stroke Length, 2,600 lb is available to buy in increments of 1
Product Overview
Enerpac® swing clamp cylinder, lower flange mounted, SL series, 1.1 in stroke length, 2,600 lb maximum force, function: double-acting, straight swivel direction, #4 port, 0.63 in² effective area clamped, 1.23 in² effective area unclamped, 6-3/4 in extended height, 500 to 5,000 psi pressure, 3 bolts, 0.312-24 UNF bolt, 0.35 in dia mounting hole.
Features
- Flexible design allows for manifold or threaded oil port connection
- No fixture hole preparation required
- Easiest mounting preparation in the swing cylinder line
- Symmetrical rectangular flange design enables clamping at three sides of the cylinder
- Allows extra large parts to be clamped
- Enerpac® lower flange series swing clamps can be bolted to the fixture, allowing easy installation of the unit and does not require machined fixture holes
- Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated o-ring ports
Specifications
| Manufacturer Part Number | SLSD121 |
|---|---|
| Manufacturer | Enerpac Tool Group |
| Brand Name | ENERPAC |
| UPC | 662005308477 |
| Length (in) | 3 |
| Width (in) | 3 |
| Height (in) | 9 |
| Warranty | Limited |
| Package Quantity | 1/Each |
