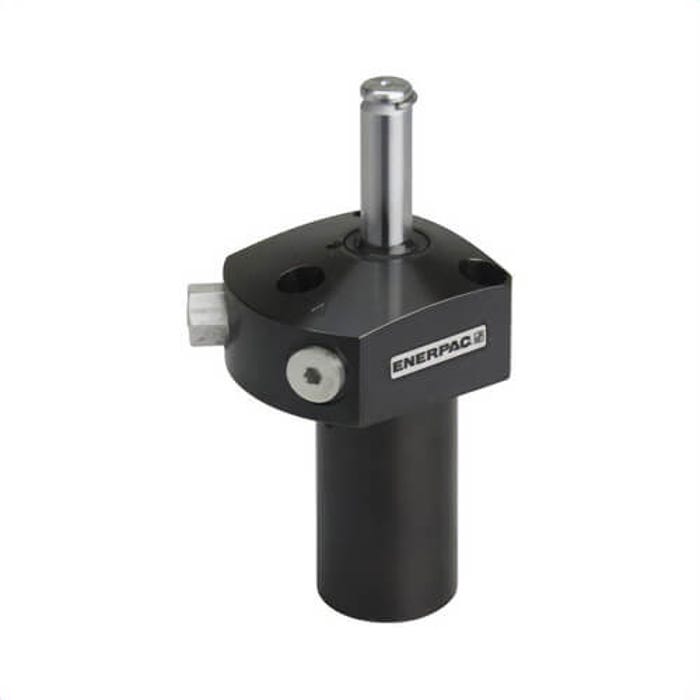

Enerpac® SURS21 Upper Flange Mounted Swing Clamp Cylinder with CAS-21 Standard Clamp Arm, 0.65 in Stroke Length, 500 lb

ENERPAC

Manufacturer #SURS21

Call for availability

Be the first to review this product

$584.29

Quantity Break Pricing may apply in the cart

HSI

SURS21-10764

UPC #:662005231119

Enerpac® SURS21 Upper Flange Mounted Swing Clamp Cylinder with CAS-21 Standard Clamp Arm, 0.65 in Stroke Length, 500 lb is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Enerpac® swing clamp cylinder, upper flange mounted, SU series, 0.65 in stroke length, 500 lb maximum force, function: single-acting, 90° swivel, right swivel direction, #2 port, 12 in³/min maximum oil flow, 0.12 in² effective area clamped, 0.08 in³ oil capacity clamped, 4.41 in extended height, 500 to 5,000 psi pressure, 3 bolts, #10-32 UNF bolt, 0.225 in dia mounting hole.

Features

Flexible design allows for manifold or threaded oil port connection
Low profile mounting style allows body to be below mounting surface
Simple mounting preparation and easy installation - three or four mounting bolts
Double oil connection - threaded port or manifold mount
Symmetrical rectangular flange design enables clamping at three sides of the cylinder
The Enerpac® upper flange swing clamps are designed for integrated manifold mounting solutions
Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated o-ring ports

Specifications

More Information
Manufacturer Part Number	SURS21
Manufacturer	Enerpac Tool Group
Brands	ENERPAC
UPC	662005231119
Length (in)	5
Width (in)	5
Height (in)	4
Warranty	Limited
Package Quantity	1/Each
