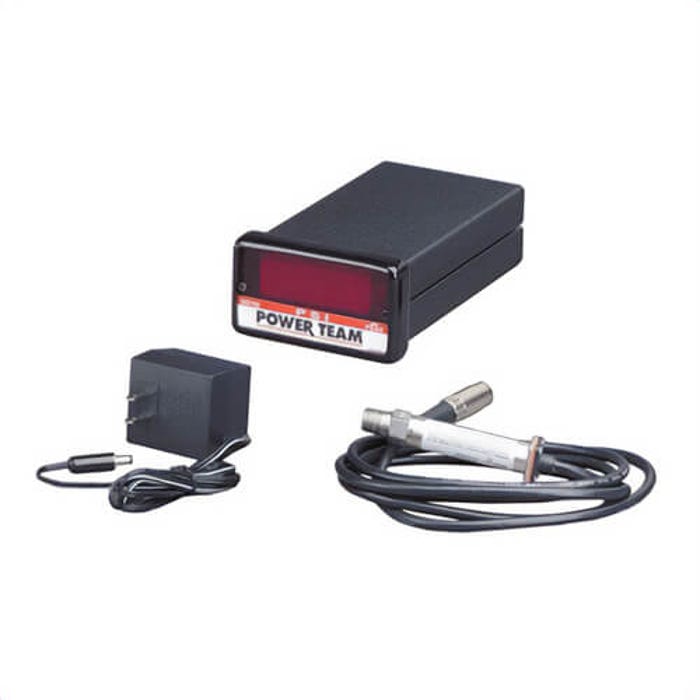

Power Team® DG100 Pressure Gauge, 0 to 10,000 psi Pressure, 1/4 in NPTF Connection, 5 A at 115V AC, 1 % Accuracy

Power Team® pressure gauge, 0 to 10,000 psi pressure, 1/4 in NPTF connection, 5 A at 115 VAC electrical rating, 1 % accuracy, digital LED display, 0 to 140° F, aluminum. Larger display characters than ordinary digital gauges. Long-life pressure transducer. 6 ft (1.8 m) signal input cable connects to back of display unit. Pressure values are displayed on large red LEDs in 10 psi (0.7 bar) or bar increments. Peak hold feature with reset toggle switch and peak on indicator, hi/low set point feature with relay outputs for hi/low alarms and/or control signals. A slow flashing display indicates pressure below the low limit, fast blinking display alerts if limit is exceeded. High and low limit relays are rated to 5 A at 115 V. Operating temperature of 0 to 140°F (-18 to 60°C) for the electronic display and -20 to 180°F (-29 to 82°C) for the transducer, gauge housings are extruded aluminum 1/8 DIN enclosures (NEMA 1 rating). When power cable is connected to gauge, display will scroll all characters, performing a self diagnostic routine. Serviced only at factory.
