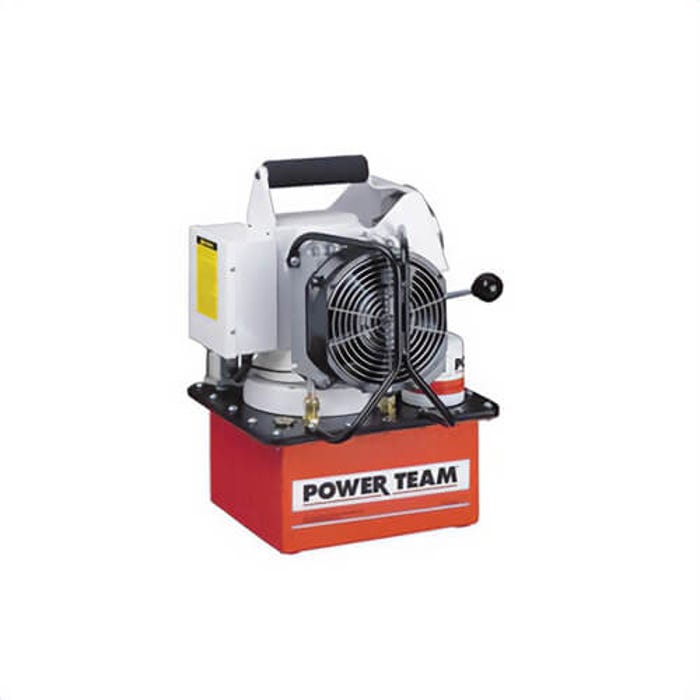

Power Team® PE604PT Portable Post Tensioning Electric Hydraulic Pump, 1-1/8 hp, 2 Stages, 157 in³, 56 in³/min Flow Rate

Power Team® electric hydraulic pump, portable post tensioning, series: PE60, 2 stage, 157 in³ reservoir, 1-1/8 hp, 56 in³/min flow rate, 0 to 10,000 psi pressure, 115 VAC, 25 A, 50/60 Hz frequency, 3/8 in FNPT pressure port, 12,000 rpm speed, 15 in OAL, 9.31 in overall width, 18-1/4 in overall height. Long, trouble free life in the most demanding work environments. For operating single or double acting cylinders or stressing jacks. Powered by 1-1/8 hp, 115V, 60/50 Hz (0.84 kW, 220V, 60/50 Hz) single phase motor, starts under load, even at the reduced voltages at construction sites. Insulated carrying handle. Integral 4 in (102 mm) diameter fluid-filled pressure gauge with steel bezel complies with ASME B40.1 grade A. 0 to 10,000 psi (0 to 700 bar) pressure range in 100 psi (7 bar) increments. Sealed 3/4 gal 4.34 L (usable) reservoir. Reservoir drain port is standard. Standard oil level sight gauge for accurate oil level monitoring. External spin-on filter removes contaminants from circulating oil to maximize pump, valve and cylinder/tool life.
