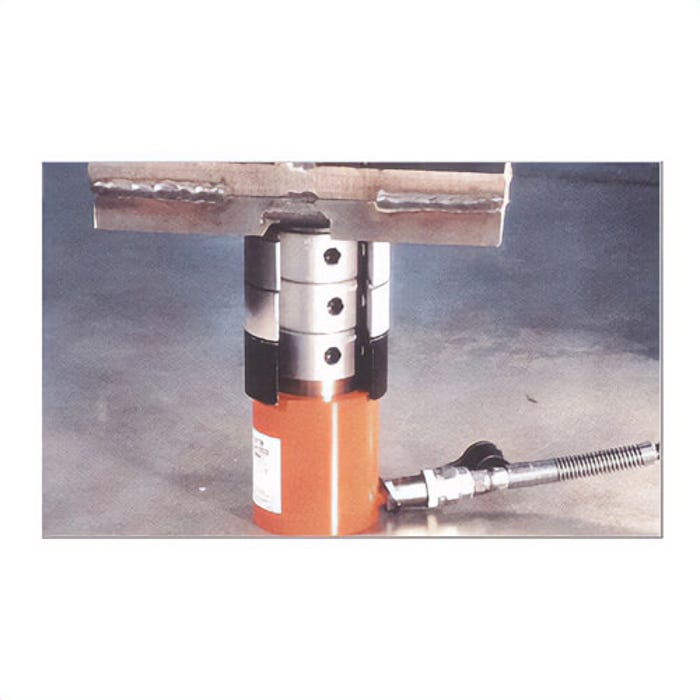

Power Team® RSS302V Hydraulic Cylinder, Low Height, Single Acting/Double Acting/Spring Return Function, 2-7/16 in, 30 ton

Power Team® hydraulic cylinder, low height, series: RSS, 2-7/16 in stroke length, 30 ton maximum force, function: single acting/double acting/spring return, 5° swivel, 6.49 in² effective area clamped, 15.8 in³ oil capacity clamped, 7-1/16 in extended height, 4-5/8 in retracted height, 9,243 psi pressure, 4 in OD dimensions. Power-Tech™ plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring (except for double acting models) provides fast piston return and low collapsed height. Coupler on 10 thru 50 ton models is angled upward 5° for added clearance. Grooved piston top keeps load from sliding. Cylinders can be dead ended at full capacity.
