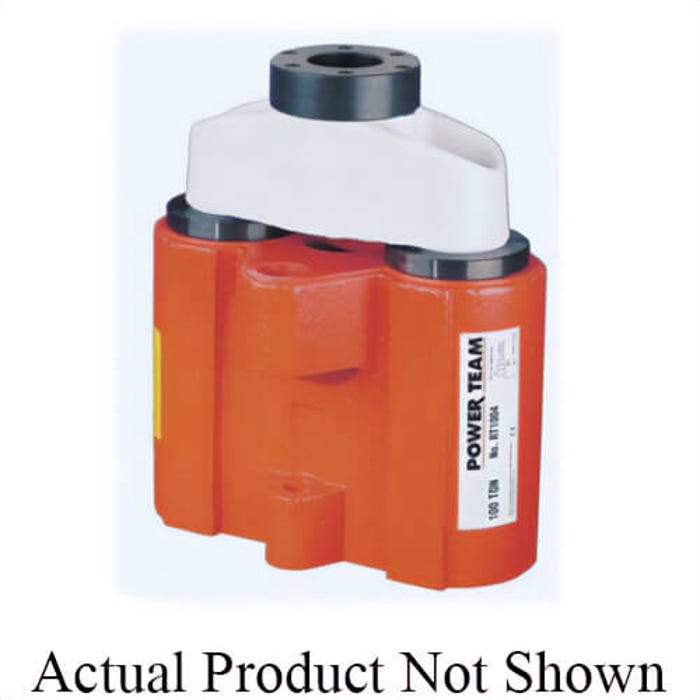

Power Team® RT1004 Hydraulic Cylinder, Center Hole, Single Acting/Double Acting/Spring Return Function, 4-7/8 in, 100 ton

Power Team® hydraulic cylinder, center hole, series: RT series, 4-7/8 in stroke length, 100 ton maximum force, function: single acting/double acting/spring return, 19.24 in² effective area clamped, 96.5 in³ oil capacity clamped, 63.2 in³ oil capacity unclamped, 20 in extended height, 15-1/8 in retracted height, 10,000 psi pressure, 10-1/2 in OD dimensions. The RT1004 has a bypass when full stroke is reached, preventing over pressurization of the cylinder. A proven design used throughout industry for over 45 years. Cylinders withstand full dead end loads. Compact design, ideal for applications in which space is limited. Basic head can be changed from a tapped hole to plain hole by simply changing insert. Pistons have Power-Tech™ treatment for corrosion and abrasion resistance.
