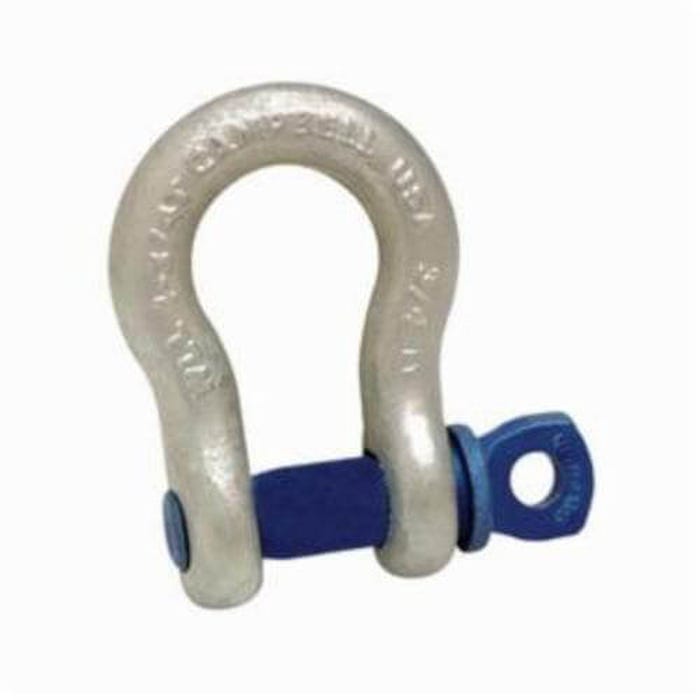

Campbell® 5412035 C-419-G Screw Pin Anchor Shackle, 12 ton WLL, 1-1/4 in, 1-3/8 in Pin dia
Manufacturer #5412035
In stock
$204.32
$204.32
Quantity Break Pricing may apply in the cart
HSI
FIT61557
UPC #:020418076398
Campbell® 5412035 C-419-G Screw Pin Anchor Shackle, 12 ton WLL, 1-1/4 in, 1-3/8 in Pin dia is available to buy in increments of 1
Product Overview
Campbell® anchor shackle, screw pin, series: C-419-G, 12 ton working load limit, 1-1/4 in diameter, 1-3/8 in screw pin diameter, 4-1/2 in inner length, 3-1/4 in inner width, 2 in opening, 3 in eye outer size, drop forged carbon steel body, alloy steel pin.
Features
- Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
- Pins and bolts are heat treated and made of alloy steel
- 5:1 design factor
- 419 series shackles meet or exceed all manufacturing requirements of ASME B30.26, including the material ductility requirement (section 26-1.1.2), design factor requirement (section 26.1.2), identification requirement (section 26-1.5.1) and effective temperature range (section 26-1.6.1)
- 419 series shackles can be proof tested in accordance with section 26-1.4
- Statistically tested for impact resistance, tensile strength, hardness, ductility and fatigue
- Do not exceed the working load limit
Specifications
| Manufacturer Part Number | 5412035 |
|---|---|
| Manufacturer | Apex Tool Group |
| Brands | CAMPBELL |
| UPC | 020418076398 |
| Length (in) | 8 |
| Width (in) | 6.5 |
| Height (in) | 3 |
| Working Load Limit (ton) | 12 |
| Series | 419 |
| Shackle Size | 1-1/4 in |
| Design Factor | 6:1 |
| Standard Approvals |
|
| Eye Outer Size (in) | 3 |
| Pin Diameter | 1-3/8 in |
| Opening Size | 2 in |
| Inner Length | 4-1/2 in |
| Inner Width | 3-1/4 in |
| Package Quantity | 1/Each |
