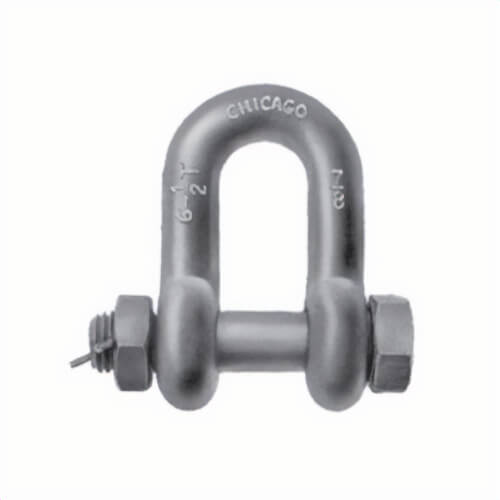

Chicago Hardware 20730 0 Bolt Pin Chain Shackle, Class 3, 2 ton WLL, 1/2 in Size dia, 5/8 in Bolt dia, Self-Colored

Manufacturer #20730 0

Call for availability

$26.67

Quantity Break Pricing may apply in the cart

HSI

20730 0-10402

Chicago Hardware 20730 0 Bolt Pin Chain Shackle, Class 3, 2 ton WLL, 1/2 in Size dia, 5/8 in Bolt dia, Self-Colored is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Chicago Hardware bolt pin anchor chain shackle, class 3, 2 ton working load limit, 1/2 in size, 5/8 in diameter Bolt pin, 1-11/16 in inner length, 13/16 in inner width, 13/16 in opening, 1-1/4 in eye outer, drop forged carbon steel body, self-colored.

Features

Size, working load limit and trademark are permanently marked on all shackles
All shackles and pins are heat treated
Loads are based on a design factor of 6:1
When tested all shackles are pulled at a uniform rate of speed in a direct tension
+/-1/16 in L tolerance
+/-1/8 in W tolerance

Specifications

More Information
Manufacturer Part Number	20730 0
Manufacturer	Chicago Hardware & Fixture
Brands	CHICAGO HARDWARE
Standard Approvals	RRC-271F Type IVA Grade A ASME B30.26
Working Load Limit (ton)	2
Design Factor	6:1
Package Quantity	1/Each
