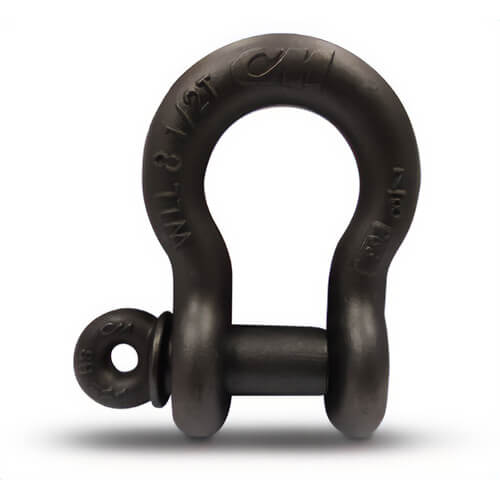

CM® M645B Super Strong Anchor Shackle, 0.5 ton Load, 3/16 in, 1/4 in dia Screw Pin, Theatrical Black Powder Coated

Manufacturer #M645B
Call for availability
List Price: $14.78
$14.78
Quantity Break Pricing may apply in the cart
HSI
M645B-10449
UPC #:043927469222
Product Overview
CM® Anchor Shackle, Super Strong, 0.5 ton, 3/16 in, 1/4 in Pin dia, Screw Pin, 0.88 in Inner Length, 0.58 in Inner Width, 0.38 in Opening, 0.57 in Eye Outer Size, Micro Alloy Steel Body, Micro Alloy Steel Pin, Theatrical Black Powder Coated.CM® super strong shackles are carbon type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

Features
  • Manufactured from technically advanced micro alloy material
  • Design factor 6:1
  • Working load limit and traceability codes shown as permanent markings on body
  • All shackles have alloy quenched and tempered pins

Specifications
More Information
Manufacturer Part Number M645B
Manufacturer Columbus McKinnon Corporation
Brand Name CM®
UPC 043927469222
Working Load Limit (ton) 0.5
Shackle Size 3/16 in
Pin Diameter 1/4 in
Eye Outer Size (in) 0.57
Opening Size 0.38 in
Inner Width 0.58 in
Inner Length 0.88 in
Type Super Strong
Finish Theatrical Black Powder Coated
Standard Approvals
  • ASTM Certified
  • SAE J429
  • ASME B30.26
  • EN 13889
  • ANSI B18
Package Quantity 1/Each
