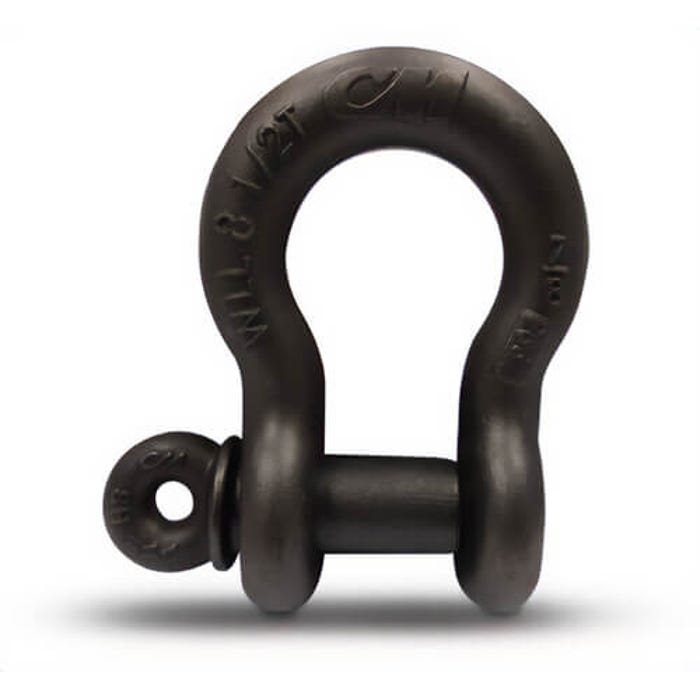

CM® M647B Super Strong Anchor Shackle, 1 ton Load, 5/16 in, 0.38 in dia Screw Pin, Theatrical Black Powder Coated

Manufacturer #M647B
Call for availability
List Price: $12.09
$12.09
Quantity Break Pricing may apply in the cart
HSI
M647B-10449
UPC #:081767647059
Product Overview
CM® Anchor Shackle, Super Strong, 1 ton, 5/16 in, 0.38 in Pin dia, Screw Pin, 1-1/4 in Inner Length, 0.81 in Inner Width, 0.53 in Opening, 0.84 in Eye Outer Size, Micro Alloy Steel Body, Micro Alloy Steel Pin, Theatrical Black Powder Coated.CM® super strong shackles are carbon type shackles with strength ratings that are 17 to 50% stronger than comparable sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

Features
  • Manufactured from technically advanced micro alloy material
  • Design factor 6:1
  • Working load limit and traceability codes shown as permanent markings on body
  • All shackles have alloy quenched and tempered pins

Specifications
More Information
Manufacturer Part Number M647B
Manufacturer Columbus McKinnon Corporation
Brand Name CM®
UPC 081767647059
Working Load Limit (ton) 1
Shackle Size 5/16 in
Pin Diameter 0.38 in
Eye Outer Size (in) 0.84
Opening Size 0.53 in
Inner Width 0.81 in
Inner Length 1-1/4 in
Type Super Strong
Finish Theatrical Black Powder Coated
Standard Approvals
  • ASTM Certified
  • SAE J429
  • ASME B30.26
  • EN 13889
  • ANSI B18
Package Quantity 1/Each
