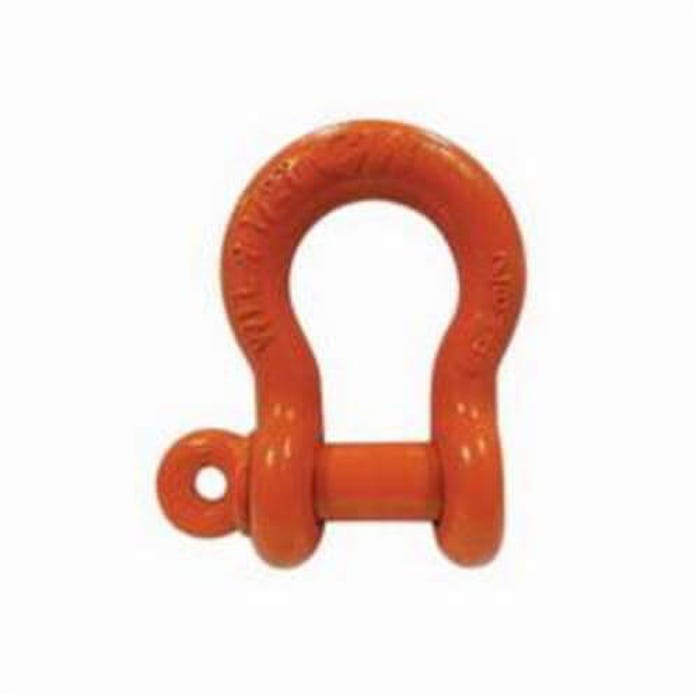

CM® M651AP Anchor Shackle, 5 ton Load, 5/8 in, 3/4 in dia Screw Pin, Orange Powder Coated

Manufacturer #M651AP

Call for availability

$40.77

Quantity Break Pricing may apply in the cart

HSI

M651AP-10449

UPC #:043927404544

CM® M651AP Anchor Shackle, 5 ton Load, 5/8 in, 3/4 in dia Screw Pin, Orange Powder Coated is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

CM® Anchor Shackle, 5 ton, 5/8 in, 3/4 in Pin dia, Screw Pin, 2-3/8 in Inner Length, 1-1/2 in Inner Width, 1.063 in Opening, 1-7/8 in Eye Outer Size, Alloy Steel Body, Alloy Steel Pin, Orange Powder Coated.Screw Pin anchor/chain shackles allow quick and easy removal of the Screw Pin and can be useful in applications where the shackle is frequently removed, but not so much in applications where the Pin is subject to torque or twisting.

Features

Made of special bar quality (SBQ) steel having fine grain, reduced sulfur and phosphorus
Shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Anchor shackles can be side loaded or used for multiple connections
Special products engineering available to fit your special lifting, tie down and pulling needs
5:1 design factor

Specifications

More Information
Manufacturer Part Number	M651AP
Manufacturer	Columbus McKinnon Corporation
Brands	CM
UPC	043927404544
Standard Approvals	Federal Specification RR-C-271D
Working Load Limit (ton)	5
Finish	Orange Powder Coated
Shackle Size	5/8 in
Eye Outer Size (in)	1/7/2008
Opening Size	1.063 in
Inner Width	1-1/2 in
Inner Length	2-3/8 in
Pin Diameter	3/4 in
Package Quantity	1/Each
