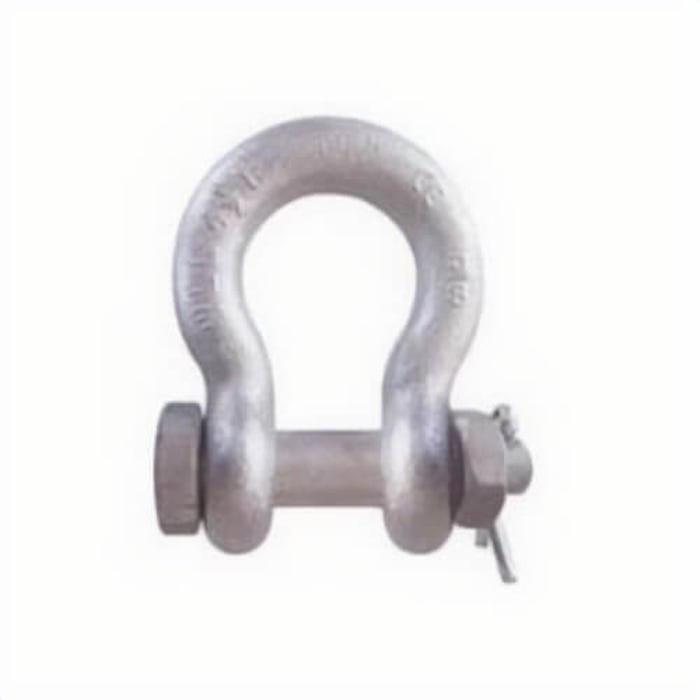

CM® M851G Super Strong Anchor Shackle, 4.5 ton Load, 5/8 in, 3/4 in dia Bolt/Nut/Cotter Pin, Galvanized

Manufacturer #M851G

In stock

$53.48

Quantity Break Pricing may apply in the cart

HSI

M851G-10449

UPC #:043927401857

CM® M851G Super Strong Anchor Shackle, 4.5 ton Load, 5/8 in, 3/4 in dia Bolt/Nut/Cotter Pin, Galvanized is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

CM® Anchor Shackle, Super Strong, 4.5 ton Load, 5/8 in Size, 3/4 in Pin dia, Bolt/Nut/Cotter Pin, 2-3/8 in Inner Length, 1-1/2 in Inner Width, 1.063 in Opening, 1-7/8 in Eye Outer, Carbon Steel Body, Alloy Steel Pin, Galvanized

Features

Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Shackles show major deformation before failure
Working load limit and traceability codes shown as permanent markings on body
All shackles have alloy quenched and tempered pins
Provides the most secure pin arrangement
Resists axial loading and torsional loading
Shock load testing of assemblies at -30° F consistently demonstrate microalloy outperforms quenched and tempered carbon material
Anchor shackles can be side loaded or used for multiple connections
6:1 design factor

Specifications

More Information
Manufacturer Part Number	M851G
Manufacturer	Columbus McKinnon Corporation
Brands	CM
UPC	043927401857
Standard Approvals	Federal Specification RR-C-271D
Working Load Limit (ton)	4.5
Type	Super Strong
Finish	Galvanized
Shackle Size	5/8 in
Eye Outer Size (in)	1/7/2008
Opening Size	1.063 in
Inner Width	1-1/2 in
Inner Length	2-3/8 in
Pin Diameter	3/4 in
Package Quantity	1/Each
