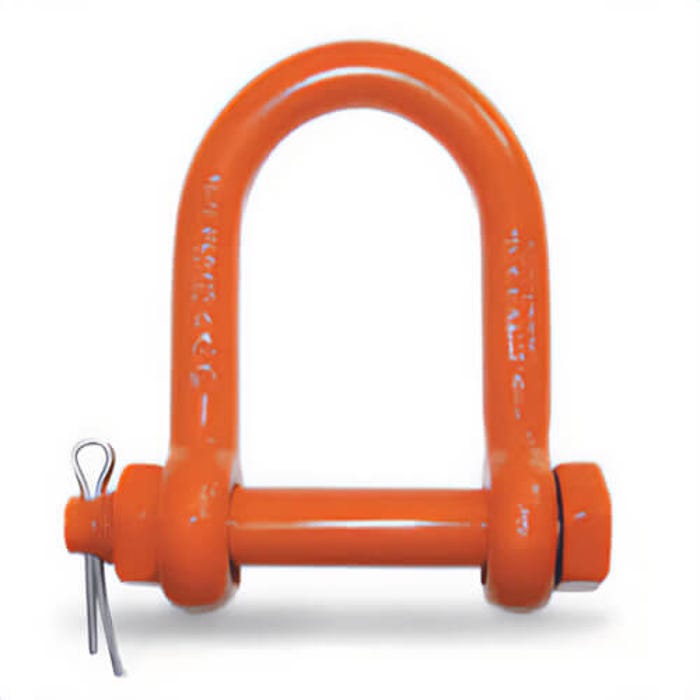

CM® M9151P Long Reach Shackle, 7000 lb Load, 5/8 in, 3/4 in Bolt/Nut/Cotter Pin, Orange Powder Coated

Manufacturer #M9151P

Call for availability

$125.75

Quantity Break Pricing may apply in the cart

HSI

FIT30163

UPC #:081767468333

CM® M9151P Long Reach Shackle, 7000 lb Load, 5/8 in, 3/4 in Bolt/Nut/Cotter Pin, Orange Powder Coated is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

CM® Long Reach Shackle, 7000 lb, 5/8 in, 3/4 in Pin dia, Bolt/Nut/Cotter Pin, 4 in Inner Length, 2-1/4 in Opening, 1.57 in Eye Outer Size, Alloy Steel Body, Alloy Steel Pin, Orange Powder Coated. as One of The Only Manufacturers of Long-Reach Shackles, We Designed These Shackles For Use in Construction Applications Where a Longer Reach is Needed to Attach to Pick Points.

Features

Design factor 5:1
WLL forged on body
Do not point load, the load should be evenly distributed over
The entire pin to achieve full working load limit
For construction applications

Specifications

More Information
Manufacturer Part Number	M9151P
Manufacturer	Columbus McKinnon Corporation
Brands	CM
UPC	081767468333
Standard Approvals	ASTM Certified SAE J429 ASME B30.26 EN 13889 ANSI B18
Working Load Limit (lb)	7,000
Finish	Orange Powder Coated
Shackle Size	5/8 in
Eye Outer Size (in)	1.57
Opening Size	2-1/4 in
Inner Length	4 in
Pin Diameter	3/4 in
Package Quantity	1/Each
