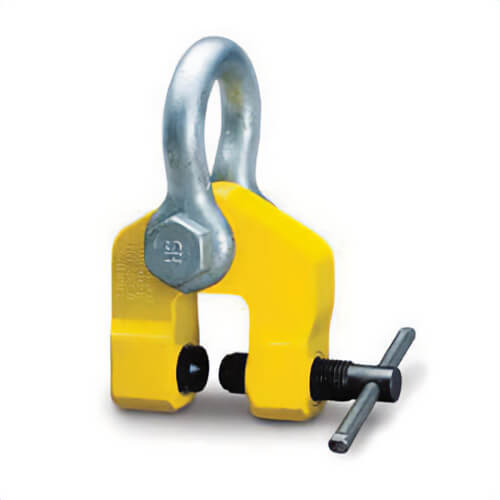

CM® Camlok™ TSH1500 Screw Clamp, 3300 lb Load, 1-1/4 in Jaw, 5.118 in OAW

Manufacturer #TSH1500
Call for availability
List Price: $1,275.24
$1,275.24
Quantity Break Pricing may apply in the cart
HSI
TSH1500-10449
Product Overview
CM® Camlok™ Screw Clamp, Series: TSH, 3300 lb, 1-1/4 in Jaw Opening, 1.024 in Bail Opening Height, 2.559 in Bail Opening Width, 5.118 in Overall Width

Features
  • Recommended for use with lever tools
  • Offer the best means of holding and securing loads - great for positioning
  • Primarily used as anchor points to allow fabrications to be pulled together and positioned during assembly or prior to welding
  • Supplied complete with an alloy shackle that allows for pulling 180°
  • High force screw threads
  • Hardened steel jaws
  • The clamps are attached by turning the screwed threaded axle
  • When load is applied to the clamp, the circular toothed pad pivots in a cam action, gripping the load
  • Swivel jaws increase grip if plate moves
  • Maximum hardness of material to lift should not exceed 300 Brinell (32HRc)
  • Not recommended for lifting applications
  • Design factor 4:1

Specifications
More Information
Manufacturer Part Number TSH1500
Manufacturer Columbus McKinnon Corporation
Brand Name CM®
Width (in) 5.118
Series TSH
Jaw Opening 1-1/4 in
Package Quantity 1/Each
