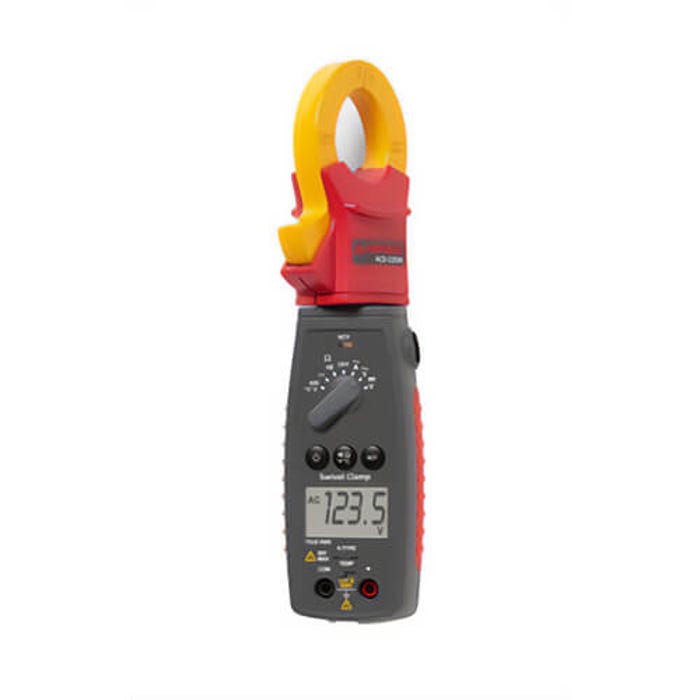

Amprobe® ACD-23SW Clamp-On Meter, True RMS, 40 to 400 A, 4 to 600V AC/DC, 400 MVDC, 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm
Manufacturer #ACD-23SW
Call for availability
$290.09
$290.09
Quantity Break Pricing may apply in the cart
HSI
ACD-23SW-12285
UPC #:095969563529
Amprobe® ACD-23SW Clamp-On Meter, True RMS, 40 to 400 A, 4 to 600V AC/DC, 400 MVDC, 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm is available to buy in increments of 1
Product Overview
Amprobe® Clamp-On Meter, True RMS, 40 to 400 A, 4 to 600V AC/DC, 400 MVDC, 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm, 50 to 500 Hz, 1.18 in Jaw, Counts: 3999, 3-3/4 Digits LCD, 500 ms AC Response, +/-2% RDG + 10 Digits at 50 to 60 Hz Accuracy, +/-1.2% RDG + 8 Digits at 400 V Hz for VAC, +/-0.5% RDG + 2 Digits at 600V DC Accuracy, Safety Rating: CAT III 600 V, 1.5 VDC AAA Alkaline Battery, 32 to 122°F Operating, 12 in L x 5.3 in W x 1.2 in H. Amprobe® new Swivel™ clamp meter features a patented 180° rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places. Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Auto and manual ranging respectively for quick checks and precise measurements. Feature rich, measuring AC DC currents, voltage, resistance and capacitance as well as CAT III 600 V safety ratings make this clamp-on meter something you should swivel to see.
Features
- Temperature measurement
- AudiTest leads, battery (installed), users manual, carrying caseable continuity
- Auto and manual ranging respectively for quick checks and precise measurements
- Auto power off, data hold
- Accommodates conductors up to 1.18 in dia
- +/-1% RDG + 4 digits at 400 Ohm to 400 kOhm, +/-1.5% RDG + 4 digits at 4 MOhm, +/-3% RDG + 5 digits at 40 MOhm resistance accuracy
Specifications
| Manufacturer Part Number | ACD-23SW |
|---|---|
| Manufacturer | Fluke® Corporation |
| Brands | AMPROBE |
| UPC | 095969563529 |
| Length (in) | 14 |
| Width (in) | 7 |
| Height (in) | 4 |
| Standard Approvals |
|
| Includes | Test Leads, (2) Batteries (Installed), Carrying Case, Type-K Thermocouple and User Manual |
| Package Quantity | 1/Each |
