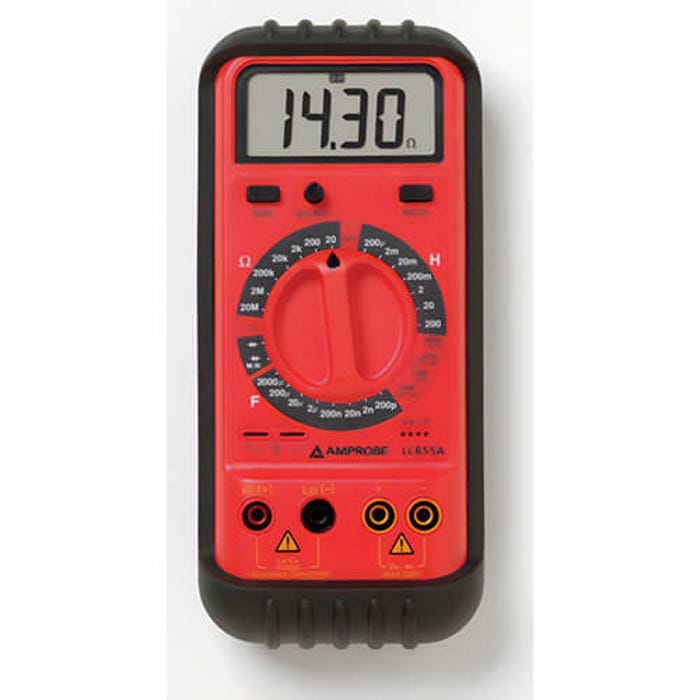

Amprobe® LCR55A Capacitance Tester, Handheld, 3/7 VDC, 0.6/1 mA, 10/100/1,000 Hz, 20 to 200 Ohm, 2 to 20 kOhm, 2 to 20 Mohm

AMPROBE

Manufacturer #LCR55A

Call for availability

Be the first to review this product

$444.74

Quantity Break Pricing may apply in the cart

HSI

LCR55A-12285

UPC #:095969414753

Amprobe® LCR55A Capacitance Tester, Handheld, 3/7 VDC, 0.6/1 mA, 10/100/1,000 Hz, 20 to 200 Ohm, 2 to 20 kOhm, 2 to 20 Mohm is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Amprobe® Capacitance Tester, Handheld, 3/7 VDC, 0.6/1 mA, 10/100/1,000 Hz, 20 to 200 Ohm, 2 to 20 kOhm, 2 to 20 MOhm, 200 to 2,000 pF, 2 to 200 uF, 2 mF, 200 uH, 2 to 200 mH, 200 H, +/-1.2% RDG (Zero Adjust) Resistance, +/-1% RDG + 1 Digit Capacitance, +/-5% RDG + 30 Digits Inductance Accuracy, 3-1/2 Digits LCD, 9 VDC Transistor Battery, 3.1 in Length, 7.2 in Width, 1-1/2 in D, 32 to 122°F Operating.

Features

The ultimate electronic component verifier measures inductance, capacitance, resistance, transistors, diodes and microwave diodes
Plug-in test slots and test leads with threaded alligator clips
Oversized, digital display
Data hold and maximum hold
Zero adjust pot for ohms
Low battery indication
Auto power off function
+/-1.2% RDG (zero adjust), +/-(0.5% RDG + 3 digits), +/-(0.5% RDG + 1 digit) and +/-(2.0% RDG + 2 digits) resistance accuracy
+/-(1.0% RDG + 1 digit), +/-(2.0% RDG + 1 digit), +/-(3.0% RDG + 3 digits) and +/-(5.0% RDG + 5 digits) capacitance accuracy
+/-(5.0% RDG + 30 digits), +/-(3.0% RDG + 20 digits) and +/-(5.0% RDG + 20 digits) inductance accuracy

Specifications

More Information
Manufacturer Part Number	LCR55A
Manufacturer	Fluke® Corporation
Brands	AMPROBE
UPC	095969414753
Width (in)	8.66
Height (in)	2.05
Standard Approvals	RoHS Compliant C-Tick N10140 CE Marked PROP65: This product is in compliance with PROP65; it is not known to contain any chemicals associated with this regulation
Warranty	1 year
Package Quantity	1/Each
