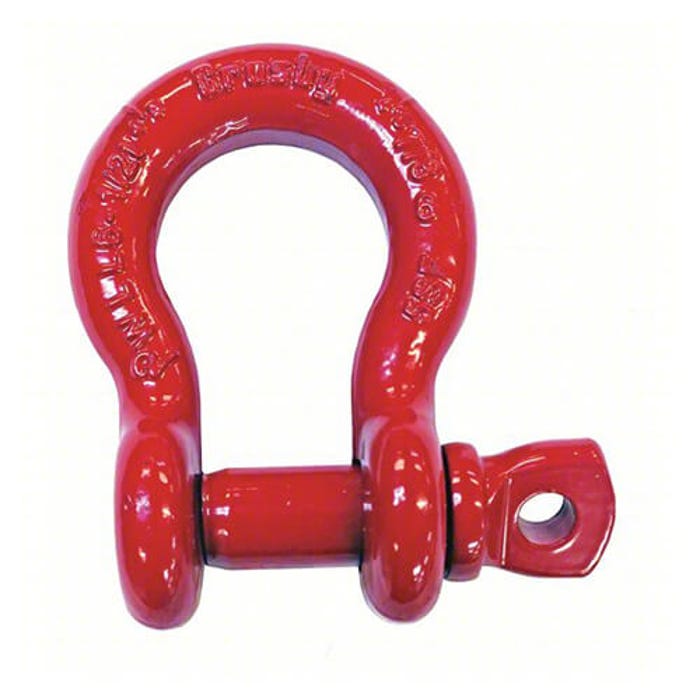

Crosby® 1018384 S-209 Screw Pin Anchor Shackle, 0.5 ton WLL, 1/4 in, 1/4 in Pin dia
Manufacturer #1018384
In stock
$11.06
$11.06
Quantity Break Pricing may apply in the cart
HSI
FIT10635
UPC #:696755714301
Crosby® 1018384 S-209 Screw Pin Anchor Shackle, 0.5 ton WLL, 1/4 in, 1/4 in Pin dia is available to buy in increments of 1
Product Overview
Crosby® anchor shackle, screw pin, series: S-209, 0.5 ton working load limit, 1/4 in diameter, 1/4 in screw pin diameter, 1.84 in overall length, 1.28 in overall width, carbon steel body.
Features
- Forged quenched and tempered with alloy pins
- Working load limit and grade 6 in permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 204°C
- Capacities 1/3 thru 55 metric tons, grade 6
- The tests are conducted by Crosby® and 3.1 test certification is available upon request
- +/-0.13 in L tolerance
- +/-0.06 in W tolerance
- Fatigue rated
- Load rated
Specifications
| Manufacturer Part Number | 1018384 |
|---|---|
| Manufacturer | Crosby Group |
| Brands | CROSBY |
| UPC | 696755714301 |
| Length (in) | 1.84 |
| Width (in) | 1.28 |
| Working Load Limit (ton) | 0.5 |
| Series | S-209 |
| Shackle Size | 1/4 in |
| Design Factor | 6:1 |
| Standard Approvals |
|
| Pin Diameter | 1/4 in |
| Type | Self-Colored |
| Package Quantity | 1/Each |
