Crosby® 1021655 G-2169 Wide Body Shackle, 7 ton WLL, 2.1 in dia, 0.88 in Screw Pin, Hot-Dipped Galvanized

CROSBY

Manufacturer #1021655

In stock

Be the first to review this product

$94.80

Quantity Break Pricing may apply in the cart

HSI

FIT11920

UPC #:662547557852

Crosby® 1021655 G-2169 Wide Body Shackle, 7 ton WLL, 2.1 in dia, 0.88 in Screw Pin, Hot-Dipped Galvanized is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

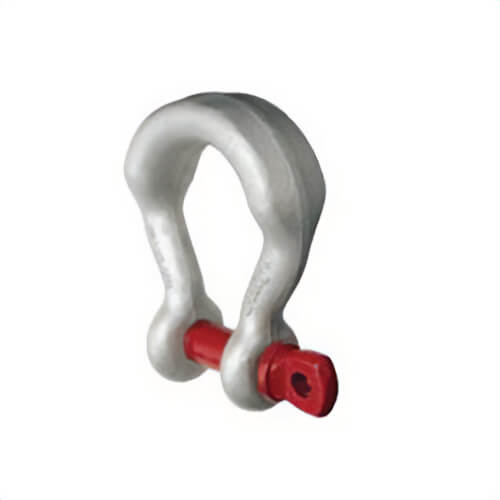

Crosby® wide body shackle, series: G-2169, 7 ton working load limit, 2.1 in size, 0.88 in pin dia, screw pin, 3.56 in inner length, 1-1/4 in inner width, 1-1/4 in opening, 1.82 in eye outer, 5.87 in overall length, 3.97 in overall width, forged alloy steel body, alloy pin, hot dipped galvanized.

Features

Individually proof tested and magnetic particle inspected Crosby® certification available at time of order
Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
Look for the Red Pin® the mark of genuine Crosby® quality

Specifications

More Information
Manufacturer Part Number	1021655
Manufacturer	Crosby Group
Brands	CROSBY
UPC	662547557852
Length (in)	5.87
Width (in)	3.97
Series	G-2169
Working Load Limit (ton)	7
Design Factor	5:1
Type	Wide Body
Shackle Size	2-1/10 in
Eye Outer Size (in)	1.82
Opening Size	1-1/4 in
Inner Width	1-1/4 in
Inner Length	3.56 in
Pin Diameter	0.88 in
Package Quantity	1/Each
