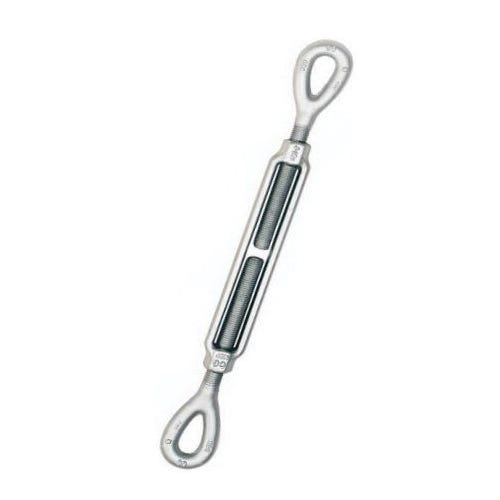

Crosby® 1031831 HG-226 Turnbuckle, 2-1/2 In. Thread, 60000 Lb. Working, 24 In. Take Up, 59.18 In. L Close, Steel

Manufacturer # 1031831
Generally in stock, call for availability
$0.00
$3,468.00
HSI
FIT14110
Crosby® 1031831 HG-226 Turnbuckle, 2-1/2 In. Thread, 60000 Lb. Working, 24 In. Take Up, 59.18 In. L Close, Steel is available to buy in increments of 1
DESCRIPTION
Crosby® Turnbuckle, Series: Hg-226, Eye/Eye End/End, 2-1/2 In Thread Dia, 60000 Lb Working, 24 In Take Up, 59.18 In Close Length, Steel, Hot Dipped Galvanized
Features
  • End fittings are quenched and tempered or normalized, bodies heat treated by normalizing
  • Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye
  • Modified UNJ thread on end fittings for improved fatigue properties
  • Body has UNC threads
  • Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
PRODUCT SPECIFICATIONS
More Information
Country of Origin US
Manufacturer Part Number 1031831
Manufacturer Crosby Group
Brand Name CROSBY®
Standard Approvals Federal Spec FF-T-791b, Type 1, Form 1, Class 4, ASTM F-1145, ASME B30.26
Weight (lb) 144.25
Series HG-226
Finish Hot Dipped Galvanized
Material Steel
Close Length 59.18 in
Take Up 24 in
Working Load Limit (lb) 60000 lb
Thread Diameter 2-1/2 in
End/End Eye/Eye
