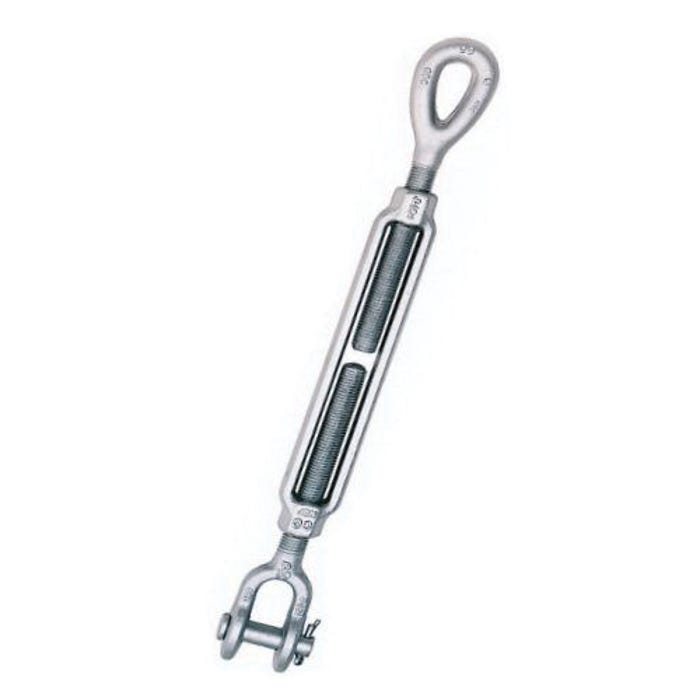

Crosby® 1032439 HG-227 Turnbuckle, 2 in Thread, 37000 lb Working, 24 in Take Up, 53.95 in L Close, Steel

Manufacturer #1032439
Call for availability
List Price: $2,567.00
$2,567.00
Quantity Break Pricing may apply in the cart
HSI
FIT14095
Crosby® Turnbuckle, Series: HG-227, Jaw/Eye, 2 in Thread dia, 37000 lb Working, 24 in Take Up, 53.95 in Close Length, Steel, Hot Dipped Galvanized
Features
  • End fittings are quenched and tempered or normalized, bodies heat treated by normalizing
  • Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye
  • For turnbuckles size 1/4 in through 2-1/2 in, a shackle one size smaller can be reeved through eye
  • Forged jaw ends are fitted with bolts and nuts for 1/4 in through 5/8 in and Pins and cotters on 3/4 in through 2-3/4 in sizes
  • Modified UNJ thread on end fittings for improved fatigue properties
  • Body has UNC threads
  • Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number 1032439
Manufacturer Crosby Group
Brand Name CROSBY®
Thread Size 2 in
Working Load Limit (lb) 37,000
Standard Approvals
  • Federal Spec FF-T-791b
  • Type 1
  • Form 1
  • Class 8
  • ASTM F-1145
  • ASME B30.26
Series HG-227
Material Steel
Package Quantity 1/Each
Unit Stock Each
