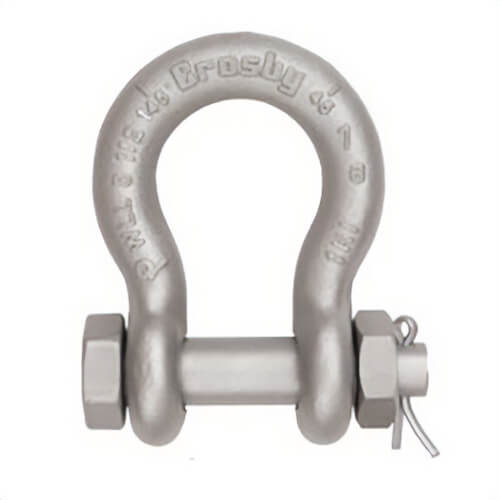

Crosby® 1219552 G-2130A Bolt Anchor Shackle, 8.5 ton WLL, 1 in, 1-1/8 in Pin dia
Manufacturer #1219552
In stock
$175.40
$175.40
Quantity Break Pricing may apply in the cart
HSI
1219552-13143
UPC #:662547561163
Crosby® 1219552 G-2130A Bolt Anchor Shackle, 8.5 ton WLL, 1 in, 1-1/8 in Pin dia is available to buy in increments of 1
Product Overview
Crosby® anchor shackle, bolt pin, series: G-2130A, 8.5 ton working load limit, 1 in diameter, 1.1 in bolt pin diameter, 3.76 in inner length, 2.7 in inner width, 1.69 in opening, 2-3/8 in eye outer, 6.58 in overall length, 5.39 in overall width, forged alloy steel body, forged alloy steel pin.
Features
- Working load limit permanently shown on every shackle
- Type approval and certification in accordance with DNV 2.7-1 offshore containers
- Shackles are quenched and tempered and meet DNV impact requirements of 42 J at -40°F
Specifications
| Manufacturer Part Number | 1219552 |
|---|---|
| Manufacturer | Crosby Group |
| Brands | CROSBY |
| UPC | 662547561163 |
| Length (in) | 6.58 |
| Width (in) | 5.39 |
| Working Load Limit (ton) | 8.5 |
| Series | G-2130A |
| Shackle Size | 1 in |
| Design Factor | 8:1 |
| Package Quantity | 1/Each |
