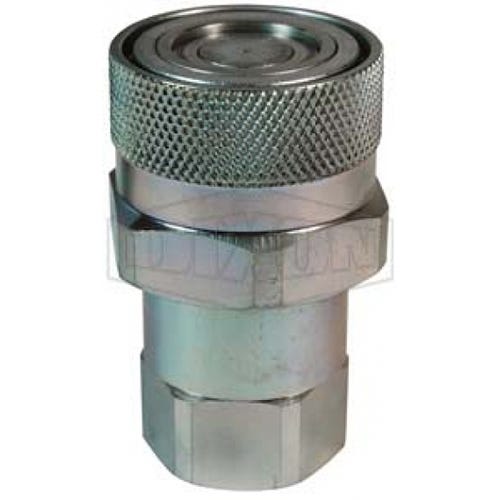

Dixon® 10VEPBF10 DQC VEP Female Coupler, 1-1/4-11 Nominal, Female BSPP, Steel, Domestic

Manufacturer #10VEPBF10
In stock
List Price: $251.20
$251.20
Quantity Break Pricing may apply in the cart
HSI
10VEPBF10-10639
Product Overview
Dixon® Female Coupler, Series: DQC VEP, 1-1/4-11 Nominal, Female BSPP, 55 mm Hex, 4.4 in Length, 5000 psi, Steel, 68.6 mm OD, Domestic

Features
  • Two-stage valving to protect critical sealing components during pressurized connection and disconnection
  • Posi-lock valve system secures valving during surge-flow conditions to prevent high-velocity damage
  • No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection
  • Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures
  • Machined components are manufactured using solid steel bar stock
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Steel componentry is plated using ROHS Compliant zinc nickel for superior corrosion resistance
  • Valve stems have molded Polyurethane seals, with a temperature range of -65 to 212°F
  • Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 to 250°F
  • TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • 1-1/4 in body
  • Interchangeable with Stucchi VEP-P/VEP-HD series, DNP PST4/FSI series, Voswinkel FT series, Parker FET-series, and Holmbury HFT series
  • 7,000 psi maximum impulse pressure
  • 20,000 psi brust pressure connected
  • 14,500 psi burst pressure coupler
  • 3,625 psi maximum pressure connect and disconnect
  • Rugged, high vibration, high impulse and high pressure
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number 10VEPBF10
Manufacturer Dixon Valve & Coupling
Brand Name DIXON®
Length (in) 4.4
Domestic/Import Domestic
Hex Size 55 mm
Material Steel
Nominal Size 1-1/4 in - 11
Package Quantity 1/Each
