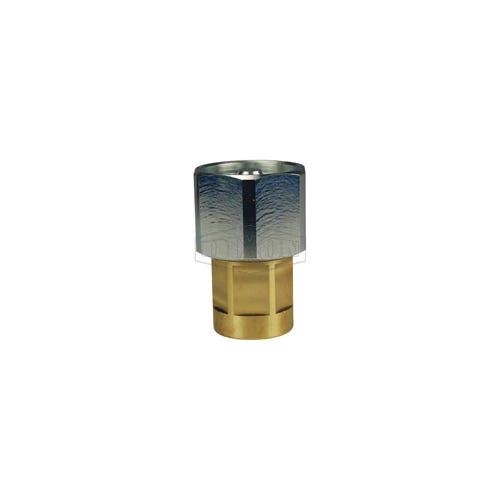

Dixon® 10WBF10-B-HN DQC W Wingstyle Interchange Hex-Nut Female Coupler, 1-1/4-11 Nominal, Female BSPP, Brass
Manufacturer #10WBF10-B-HN
In stock
List Price:
$163.20
$163.20
Quantity Break Pricing may apply in the cart
HSI
10WBF10-B-HN-10639
Product Overview
Dixon® Wingstyle Interchange Hex-Nut Female Coupler, Series: DQC W, 1-1/4-11 Nominal, Female BSPP, 1-25/32 in Hex, 3.64 in Length, 3000 psi, -40 to 250°F, Brass, Polished Chrome, 1-3/4 in OD
Features
- Machined components are manufactured using solid bar stock
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Rugged steel wing nut for threaded connect and disconnect operation
- Nitrile (Buna-N) seals are standard
- Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection
- Redundant O-ring on the coupler body will engage nipple for secondary sealing support
- Couplings have a TPC-EPT back-up ring on the valve sleeve to extend service life
- 1-1/4 in body
- Compatible with Aeroquip 5100-series, Parker 6100-series, Snap-Tite 78-series, Faster series-FB, Safeway S51-series
- Widely used on dump trailer wet-line hydraulic systems and oil field equipment
Specifications
Manufacturer Part Number | 10WBF10-B-HN |
---|---|
Manufacturer | Dixon Valve & Coupling |
Brand Name | DIXON |
Length (in) | 3.64 |
Height (in) | 1.75 |
Temperature Rating | -40 to 250°F |
Hex Size | 1-25/32 in |
Finish | Polished Chrome |
Material | Brass |
Nominal Size | 1-1/4 in - 11 |
Standard Approvals |
|
Package Quantity | 1/Each |
