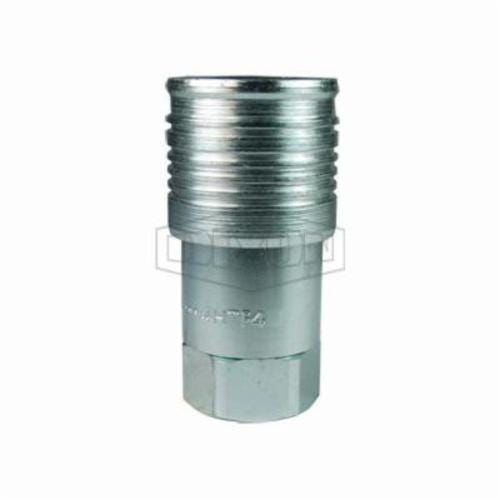

Dixon® 16HTF16 DQC HT Flushface Female Coupler, 2-11-1/2 Nominal, Female NPTF, Steel

Manufacturer #16HTF16

In stock

Be the first to review this product

List Price: $1,320.62

$1,320.62

Quantity Break Pricing may apply in the cart

HSI

16HTF16-10639

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Dixon® Flushface Female Coupler, Series: DQC HT, 2-11-1/2 Nominal, Female NPTF, 2-1/2 in Hex, 6-3/4 in Length, 3000 psi, Steel, Polished Chrome, 3.95 in OD

Features

High flow performance, compact profile
Easily rebuildable
Bulkhead mountable sleeve for breakaway, multi-plate or blindmate installations
DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
Steel componentry is plated using ROHS compliant trivalent chrome
Steel coupler sleeves are hardened to resist deformation and maximize service life
Couplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212°F
Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250°F
PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
2 in body
Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
Rated pressure for connected steel coupler and steel plug: 3,000 psi maximum working and 12,000 psi burst
Rated pressure for uncoupled steel coupler 3,000 psi maximum working and 12,000 psi burst
For industrial, breakers and construction applications

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

More Information
Manufacturer Part Number	16HTF16
Manufacturer	Dixon Valve & Coupling
Brand Name	DIXON®
Length (in)	6.75
Height (in)	3.95
Series	DQC HT
Standard Approvals	ISO16028 RoHS Compliant
Hex Size	2-1/2 in
Finish	Polished Chrome
Material	Steel
Nominal Size	2 in - 11-1/2
Package Quantity	1/Each
