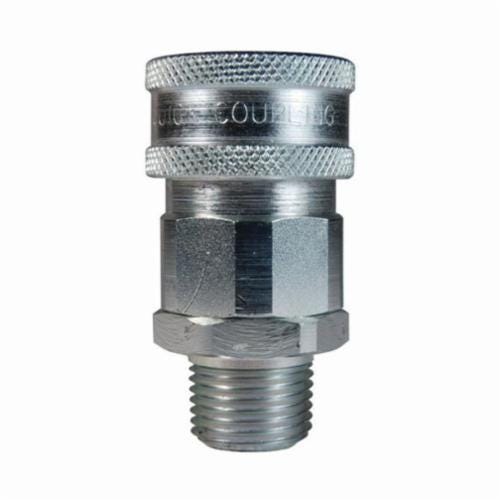

Dixon® 2VM2 V/Snap-Tite H/IH Valved Hydraulic Interchange Coupler, 1/4 in x 1/4-18 Nominal, Quick-Connect x MNPT, Buna-N® Seal/Steel Body, Domestic

Manufacturer #2VM2

In stock

Be the first to review this product

List Price: $25.98

$25.98

Quantity Break Pricing may apply in the cart

HSI

2VM2-10639

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Dixon® Hydraulic Interchange Coupler, Valved, Series: V/Snap-Tite H/IH, 1/4 in x 1/4-18 Nominal, Quick-Connect x MNPT, 2.12 in Length, 6500 psi, -40 to 250°F, Buna-N® Seal/Steel Body, Domestic

Features

Interchangeable to MIL-C-51234
Interchangeable with Snap-Tite H/IH and Faster TNV/TNL
Machined components are manufactured using solid bar stock
Steel componentry is plated using ROHS compliant trivalent chrome
Tubular 'TV' valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applications
All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage
12700 psi burst
0.99 OD max
7/8 in hex

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

PRODUCT SPECIFICATIONS

More Information
Manufacturer Part Number	2VM2
Manufacturer	Dixon Valve & Coupling
Brand Name	DIXON®
Length (in)	2.12
Series	V/Snap-Tite H/IH
Domestic/Import	Domestic
Temperature Rating	-40 to 250°F
End Style	Quick-Connect x MNPT
Pressure Rating	6500 psi
Type	Valved
Material	Buna-N® Seal/Steel Body
Nominal Size	1/4 in x 1/4 in - 18
Package Quantity	1/Each
