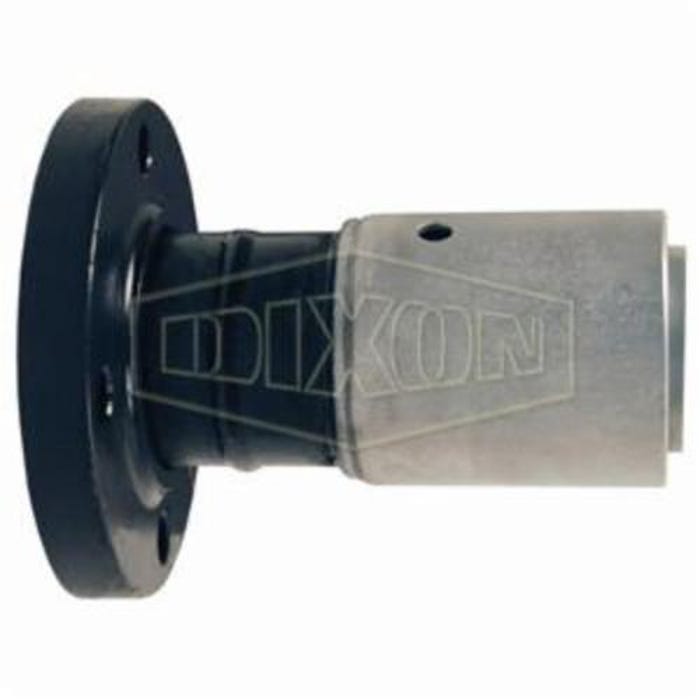

Dixon® 48P2LJ15 Holedall® External Swage Floating Flange, 3 in ID x 3-41/64 to 3-48/64 in OD, Carbon Steel, Domestic

Manufacturer #48P2LJ15

In stock

$418.19

Quantity Break Pricing may apply in the cart

HSI

48P2LJ15-10639

Dixon® 48P2LJ15 Holedall® External Swage Floating Flange, 3 in ID x 3-41/64 to 3-48/64 in OD, Carbon Steel, Domestic is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Dixon® Floating Flange, External Swage, Series: Holedall®, 3 in ID x 3-41/64 to 3-48/64 in OD Nominal, 1-3/16 in Thickness, Carbon Steel, 10-3/8 in, Domestic

Features

150 lb ASA flange drilling
The Holedall coupling provides long-lasting efficiency and safety
The coupling system requires no bolts and results in a clean coupling with no protrusions
Carbon steel stem length, ferrule and flange
Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system
Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products
Do not use a wrench or vice on ferrule
Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD
Dixon® die and ferrule recommendation guide is to be used to select correct dies and ferrules
Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
Media being transported through the hose should be compatible with the stem material
Compatibility of ferrule material with the environment in which it will be used is recommended
For applications other than the ones list, please consult Dixon
Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

More Information
Manufacturer Part Number	48P2LJ15
Manufacturer	Dixon Valve & Coupling
Brands	DIXON
Width (in)	10.375
Type	External Swage
Domestic/Import	Domestic
Material	Carbon Steel
Outside Diameter	3-41/64 to 3-48/64 in
Inside Diameter	3 in
Thickness	1.1875 in
Package Quantity	1/Each
