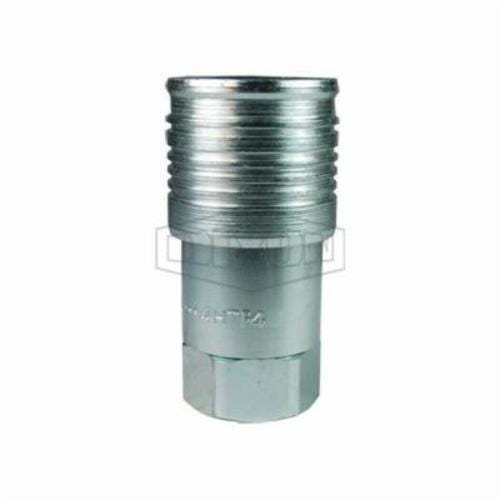

Dixon® 4HTBF6 DQC HT Flushface Female Coupler, 3/4-14 Nominal, Female BSPP, Steel
Manufacturer #4HTBF6
In stock
List Price:
$79.67
$79.67
Quantity Break Pricing may apply in the cart
HSI
4HTBF6-10639
Product Overview
Dixon® Flushface Female Coupler, Series: DQC HT, 3/4-14 Nominal, Female BSPP, 1-5/16 in Hex, 3.22 in Length, 5000 psi, Steel, Polished Chrome, 1.54 in OD
Features
- High flow performance, compact profile
- Easily rebuildable
- Bulkhead mountable sleeve for breakaway, multi-plate or blindmate installations
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Couplers have polyurethane valve stem O-ring, with a temperature range of -65 to 212°F
- Ancillary coupler seals are nitrile (Buna-N), with a temperature range of -40 to 250°F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 1/2 in body
- Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
- Rated pressure for connected steel coupler and steel plug: 5,000 psi maximum working and 20,000 psi burst
- Rated pressure for uncoupled steel coupler 5,000 psi maximum working and 20,000 psi burst
- For industrial, breakers and construction applications
Specifications
Manufacturer Part Number | 4HTBF6 |
---|---|
Manufacturer | Dixon Valve & Coupling |
Brand Name | DIXON |
Length (in) | 3.22 |
Height (in) | 1.54 |
Hex Size | 1-5/16 in |
Finish | Polished Chrome |
Material | Steel |
Nominal Size | 3/4 in - 14 |
Standard Approvals |
|
Package Quantity | 1/Each |
