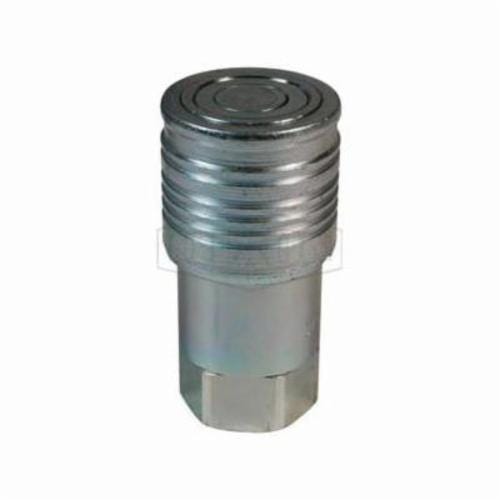

Dixon® 4HTF4 HT Series Flush Face Quick Connect Coupling, 1/2-14 Nominal, FNPT, Steel, Domestic

Manufacturer #4HTF4

In stock

Be the first to review this product

List Price: $71.42

$71.42

Quantity Break Pricing may apply in the cart

HSI

4HTF4-10639

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Dixon® Quick Connect Coupling, Flush Face, Series: HT Series, 1/2-14 Nominal, FNPT, 1-3/16 in Hex, 3.02 in Length, 5000 to 20000 psi, -40 to 250°F, Steel, Domestic

Features

High flow performance, compact profile
Easily rebuildable
Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
Steel componentry is plated using ROHS compliant trivalent chrome
Steel coupler sleeves are hardened to resist deformation and maximize service life
Couplers have polyurethane valve stem O-Ring, with a temperature range of -65 to 212° F
Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 to 250° F
PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
Interchangeable to ISO16028
Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

More Information
Manufacturer Part Number	4HTF4
Manufacturer	Dixon Valve & Coupling
Brand Name	DIXON
Length (in)	3.02
Domestic/Import	Domestic
Temperature Rating	-40 to 250°F
Hex Size	1-3/16 in
Type	Flush Face
Material	Steel
Nominal Size	1/2 in - 14
Warranty	Limited
Package Quantity	1/Each
