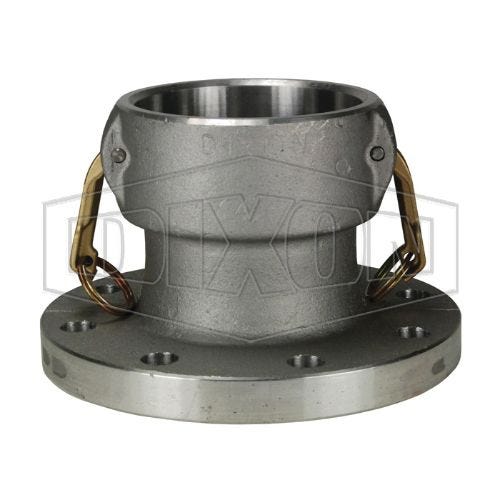

Dixon® 600-DL-AL Cam and Groove Coupler, 6 in Nominal, Coupler x Class 150 Flange End Style, Aluminum

Manufacturer #600-DL-AL
Call for availability
List Price: $365.35
$365.35
Quantity Break Pricing may apply in the cart
HSI
600-DL-AL-10639
Dixon® 600-DL-AL Cam and Groove Coupler, 6 in Nominal, Coupler x Class 150 Flange End Style, Aluminum is available to buy in increments of 1
Product Overview
Dixon® Cam and Groove Coupler, Coupling Fitting/Connector, 6 in Nominal, Coupler x Class 150 Flange End Style, 1 in Thickness, 75 psi Pressure, Aluminum, 8-1/8 in H Dimensions

Features
  • 16-1/4 in open cam arm
  • Supplied standard with a Buna-N gasket
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed
  • 75 psi at ambient temperature 70°F pressure
  • 356T6 Aluminum
  • Designed for use with liquids
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number 600-DL-AL
Manufacturer Dixon Valve & Coupling
Brand Name DIXON
Height (in) 8.125
Warnings
  • This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
Nominal Size 6 in
Fitting/Connector Type Coupling
Material Aluminum
Thickness 1 in
Package Quantity 1/Each
