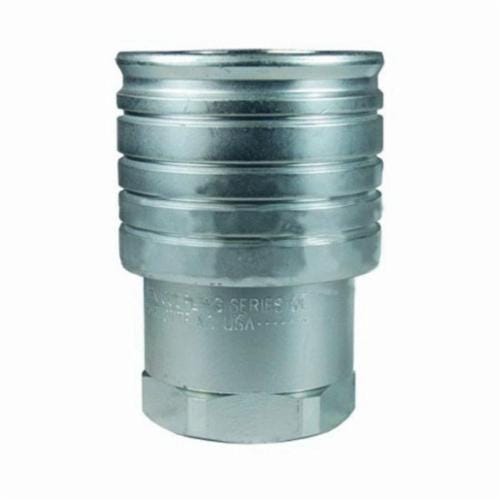

Dixon® 6STF6 ST Snap-Tite 71 Hydraulic Interchange Coupler, 3/4 in x 3/4-14 Nominal, Quick-Connect x FNPT, Buna-N® Seal/Steel Body, Domestic

Manufacturer #6STF6

Call for availability

List Price: $133.37

$133.37

Quantity Break Pricing may apply in the cart

HSI

6STF6-10639

Dixon® 6STF6 ST Snap-Tite 71 Hydraulic Interchange Coupler, 3/4 in x 3/4-14 Nominal, Quick-Connect x FNPT, Buna-N® Seal/Steel Body, Domestic is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Dixon® Hydraulic Interchange Coupler, Series: ST Snap-Tite 71, 3/4 in x 3/4-14 Nominal, Quick-Connect x FNPT, 3.03 in Length, 7500 psi, -40 to 250°F, Buna-N® Seal/Steel Body, Domestic

Features

Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
Steel coupler sleeves are hardened to resist deformation and maximize service life
Incorporates PTFE or TPC-ET anti-extrusion rings to protect seal components from dynamic impulse damage
20200 psi burst pressure
2.35 in OD maximum
1-3/4 in hex

WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications

More Information
Manufacturer Part Number	6STF6
Manufacturer	Dixon Valve & Coupling
Brand Name	DIXON
Length (in)	3.03
Nominal Size	3/4 in x 3/4 in - 14
Domestic/Import	Domestic
Material	Buna-N® Seal/Steel Body
Temperature Rating	-40 to 250°F
Package Quantity	1/Each
