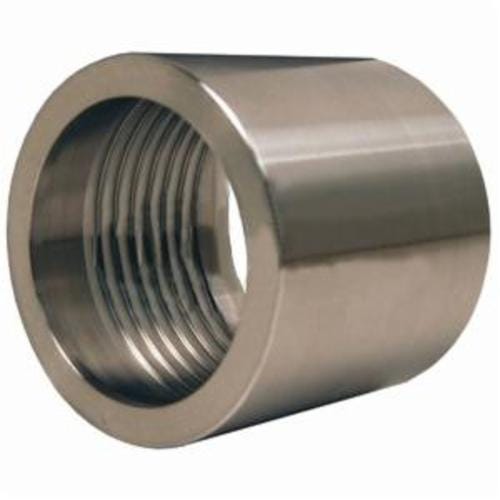

Dixon® F24G-2031 Sanitary Crimp Ferrule, 1-1/2 in ID x 1-62/64 to 2-1/64 in OD Nominal, Hose, 2 in L, 304 Stainless Steel, Domestic

Manufacturer #F24G-2031
In stock
List Price: $47.87
$47.87
Quantity Break Pricing may apply in the cart
HSI
F24G-2031-10639
Product Overview
Dixon® Sanitary Crimp Ferrule, 1-1/2 in ID x 1-62/64 to 2-1/64 in OD Nominal, Hose End Style, 2 in Length, 304 Stainless Steel, 2-7/32 in dia, Domestic

Features
  • Ferrules have a surface finish of 63 or better construction
  • AISI 304 stainless steel
  • Dixon® sanitary crimp ferrules are to be used with Dixon® sanitary crimp stems only
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
  • Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
  • For applications other than the ones list, please consult Dixon®
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
  • Media being transported through the hose should be compatible with the stem material
  • Compatibility of ferrule material with the environment in which it will be used is recommended
  • For food, dairy and pharmaceutical applications where increased flow capacity is important
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number F24G-2031
Manufacturer Dixon Valve & Coupling
Brand Name DIXON
Length (in) 2
Height (in) 2.219
Diameter 2-7/32 in
Inside Diameter 1-1/2 in
Outside Diameter 1-62/64 to 2-1/64 in
Domestic/Import Domestic
Material 304 Stainless Steel
Standard Approvals
  • PROP65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Warranty Limited
Package Quantity 1/Each
