Dixon® GB36 Boss™ Ground Joint Stem, 3 in, Iron, Domestic
Manufacturer #GB36
Call for availability
List Price:
$83.98
$83.98
Quantity Break Pricing may apply in the cart
HSI
GB36-10639
Dixon® GB36 Boss™ Ground Joint Stem, 3 in, Iron, Domestic is available to buy in increments of 1
Product Overview

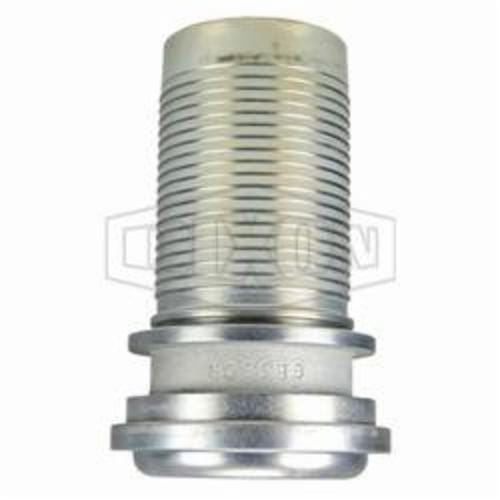

Dixon® Ground Joint Stem, Series: Boss™, Stem, 3 in Nominal, Iron, Plated, 4-1/4 in dia x 7-1/2 in L, Domestic
Features
- The stem part that is clamped to the hose is one half of the boss ground joint connection
- The boss ground joint spud part of the coupling serves as the other half and is usually fixed to the equipment
- The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
- Easy to seal
- Leakproof seal forms when the metal head of the stem makes contact with the patented polymer seat in the boss ground joint spud
- Has a machined shank to accepts a Boss, clamp, king crimp sleeve or a ferrule
- Recommended for steam service up to 450°F
- Worn-out hose couplings can be dangerous
- They should be checked regularly and replace when necessary
- Each coupling user should review applications and add safety devices where indicated
- Note: pressurized steam is an extremely dangerous commodity
- Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! never use an unapproved item for steam service
- Always follow the manufacturer's product recommendations for pressurized steam handling
- Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections
- They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
- Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
Specifications
| Manufacturer Part Number | GB36 |
|---|---|
| Manufacturer | Dixon Valve & Coupling |
| Brand Name | DIXON |
| Length (in) | 7.5 |
| Width (in) | 4.25 |
| Warnings |
|
| Nominal Size | 3 in |
| Finish | Plated |
| Domestic/Import | Domestic |
| Fitting/Connector Type | Stem |
| Diameter | 4-1/4 in |
| Material | Iron |
| Package Quantity | 1/Each |
