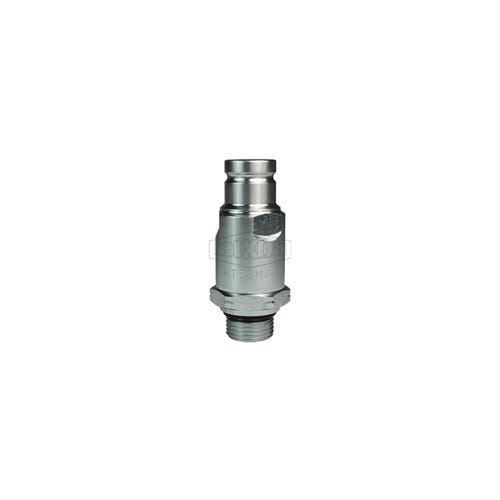

Dixon® HT3OM3 DQC HT Flushface Male Plug, 9/16-18 Nominal, Male O-Ring Boss™, Steel

Manufacturer #HT3OM3
In stock
List Price: $44.75
$44.75
Quantity Break Pricing may apply in the cart
HSI
HT3OM3-10639
Product Overview
Dixon® Flushface Male Plug, Series: DQC HT, 9/16-18 Nominal, Male O-Ring Boss™, 1-1/8 in Hex, 2.73 in Length, 5000 psi, Steel, 1.17 in OD

Features
  • High flow performance, compact profile
  • Easily rebuildable
  • High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
  • Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal
  • Machined components are manufactured using solid bar stock
  • Steel nipples are hardened to provide resistance to brinelling during impulse service
  • Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of-40 to 250°F
  • PTFE or TPC-ET Anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • 3/8 in body
  • Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
  • Rated pressure for connected steel coupler and steel plug: 5,000 psi maximum working and 20,000 psi burst
  • Rated pressure for uncoupled steel coupler 5,000 psi maximum working and 20,000 psi burst
  • For industrial, breakers and construction applications
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number HT3OM3
Manufacturer Dixon Valve & Coupling
Brand Name DIXON
Length (in) 2.73
Height (in) 1.17
Hex Size 1-1/8 in
Material Steel
Nominal Size 9/16 in - 18
Standard Approvals
  • ISO Certified
Warranty Limited
Package Quantity 1/Each
