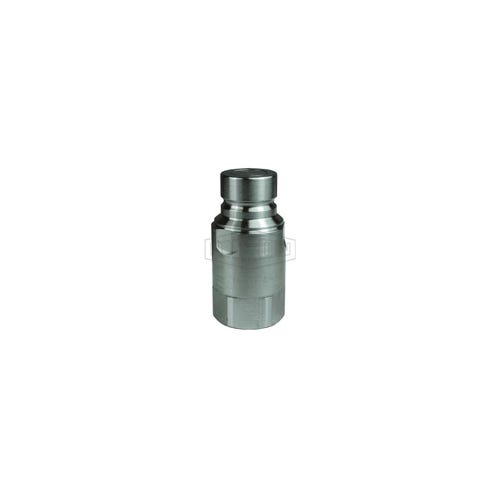

Dixon® HT4F4-SS DQC HT Flushface Female Plug, 1/2-14 Nominal, Female NPTF, 316 Stainless Steel

Manufacturer #HT4F4-SS
In stock
List Price: $205.94
$205.94
Quantity Break Pricing may apply in the cart
HSI
HT4F4-SS-10639
Dixon® Flushface Female Plug, Series: DQC HT, 1/2-14 Nominal, Female NPTF, 1-3/16 in Hex, 2.63 in Length, 3400 psi, 316 Stainless Steel, 1.31 in OD
Features
  • High flow performance, compact profile
  • Easily rebuildable
  • High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
  • Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal
  • Machined components are manufactured using solid bar stock
  • PTFE or TPC-ET Anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • 1/2 in body
  • Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
  • Rated pressure for connected 316 stainless steel coupler and 316 stainless steel plug: 3400 psi maximum working and 17000 psi burst
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number HT4F4-SS
Manufacturer Dixon Valve & Coupling
Brand Name DIXON®
Length (in) 2.63
Height (in) 1.31
Series DQC HT
Standard Approvals
  • ISO Certified
End Style Female NPTF
Hex Size 1-3/16 in
Pressure Rating 3400 psi
Material 316 Stainless Steel
Nominal Size 1/2 in - 14
Package Quantity 1/Each
