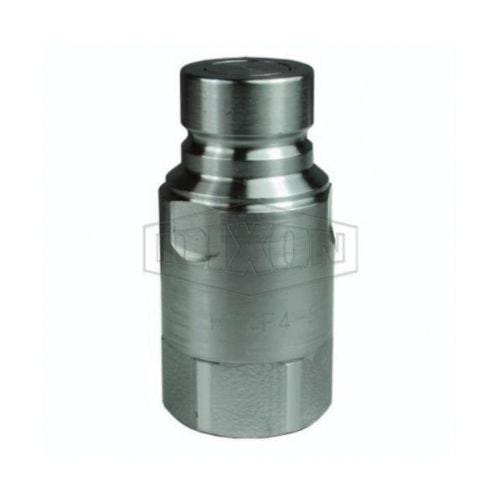

Dixon® HT5F6-SS Flush Face Female Plug, 3/4-14 Nominal, FNPT, 1-1/2 in Hex, 2.88 in L, 3500 psi
Manufacturer #HT5F6-SS
In stock
$286.64
$286.64
Quantity Break Pricing may apply in the cart
HSI
HT5F6-SS-10639
Dixon® HT5F6-SS Flush Face Female Plug, 3/4-14 Nominal, FNPT, 1-1/2 in Hex, 2.88 in L, 3500 psi is available to buy in increments of 1
Product Overview
Dixon® flush face female plug, series: HT series, 3/4-14 nominal, FNPT, 1-1/2 in hex, 2.88 in length, 3500 psi, 316 stainless steel, domestic.
Features
- Machined components are manufactured using solid bar stock
- Easily rebuildable
- High flow performance, compact profile
- High-strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
- Improved sealing system incorporates a high performance molded polyurethane or o-ring energized PTFE valve seal
- Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
- Steel nipples are hardened to provide resistance to brinelling during impulse service
- Has molded polyurethane valve seals, with a temperature range of -65 to 212°F
- Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40 to 250°F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- 20000 psi burst pressure
- 3500 psi at 70°F pressure
Specifications
| Manufacturer Part Number | HT5F6-SS |
|---|---|
| Manufacturer | Dixon Valve & Coupling |
| Brands | DIXON |
| Length (in) | 2.88 |
| Standard Approvals |
|
| Warranty | Limited |
| Nominal Size | 3/4 in - 14 |
| Hex Size | 1-1/2 in |
| Domestic/Import | Domestic |
| Material | 316 Stainless Steel |
| Package Quantity | 1/Each |
