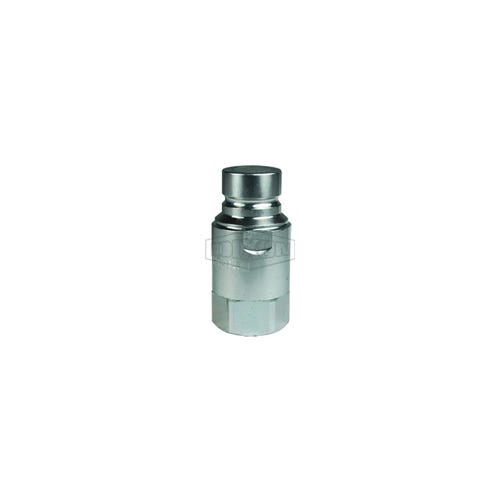

Dixon® HT8BF8 DQC HT Flushface Female Plug, 1-11 Nominal, Female BSPP, Steel

Manufacturer #HT8BF8
In stock
List Price: $180.53
$180.53
Quantity Break Pricing may apply in the cart
HSI
HT8BF8-10639
Dixon® Flushface Female Plug, Series: DQC HT, 1-11 Nominal, Female BSPP, 1-3/4 in Hex, 3-1/2 in Length, 5000 psi, Steel, 1.96 in OD
Features
  • High flow performance, compact profile
  • Easily rebuildable
  • High strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
  • Improved sealing system incorporates a high performance molded polyurethane or O-ring energized PTFE valve seal
  • Machined components are manufactured using solid bar stock
  • Steel nipples are hardened to provide resistance to brinelling during impulse service
  • Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of-40 to 250° F
  • PTFE or TPC-ET Anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
  • 1 in body
  • Interchangeable to ISO16028, Parker FEM-series, Snap-Tite 74-series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, Faster FFH/2FFN/2FFI, Safeway FF49-series
  • Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
  • Rated pressure for uncoupled steel coupler 5000 psi maximum working and 20000 psi burst
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
PRODUCT SPECIFICATIONS
More Information
Manufacturer Part Number HT8BF8
Manufacturer Dixon Valve & Coupling
Brand Name DIXON®
Length (in) 3.5
Height (in) 1.96
Series DQC HT
Standard Approvals
  • ISO Certified
End Style Female BSPP
Hex Size 1-3/4 in
Pressure Rating 5000 psi
Material Steel
Nominal Size 1 in - 11
Package Quantity 1/Each
