Dixon® IXF48-U Internal Expansion Ferrule, 3 in ID x 3-36/64 to 3-40/64 in OD Nominal, Hose, Carbon Steel, Domestic

Manufacturer #IXF48-U
In stock
List Price: $57.76
$57.76
Quantity Break Pricing may apply in the cart
HSI
IXF48-U-10639
Product Overview

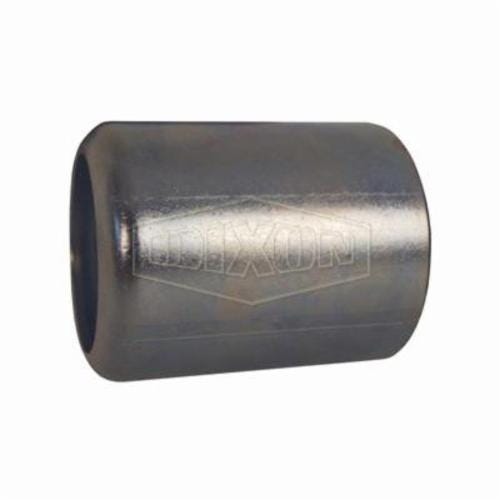

Dixon® ferrule, internal expansion, 3 in ID x 3-36/64 to 3-40/64 in OD nominal, hose end style, carbon steel, plated, 3-5/8 in ID, domestic.

Features
  • ISM, IXH and IXV styles holedall internal expansion stems
  • Internally expanded couplings are essential when maximum flow of media is important
  • Reduces turbulence through hose
  • Excellent sealing and retention characteristics
  • Outperforms band clamps
  • Easy and consistent installation
  • Only one expansion tool is needed for each ID
  • Dixon® holedall stems and ferrules are specifically designed to be used together as a coupling system
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® holedall products
  • Do not use a wrench or vice on ferrule
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure
  • Holedall fittings are not to be used with cable reinforced high pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations
  • Strict adherences to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance
  • Internally expanded holedall couplings are not to be used with plastic lined chemical hose
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure
  • Media being transported through the hose should be compatible with the stem material
  • Compatibility of ferrule material with the environment in which it will be used is recommended
  • For applications other than the ones list, please consult Dixon®
  • For concrete placement, grout and plaster, food, dairy, pharmaceutical as well as other applications where increased flow capacity is important
  • Contact Dixon® for additional applications and working pressure information
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov
WARNING: Cancer and Reproductive Harm —
www.p65warnings.ca.gov

Specifications
More Information
Manufacturer Part Number IXF48-U
Manufacturer Dixon Valve & Coupling
Brand Name DIXON
Inside Diameter 3 in
Outside Diameter 3-36/64 to 3-40/64 in
Domestic/Import Domestic
Type Internal Expansion
Finish Plated
Material Carbon Steel
Standard Approvals
  • PROP65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Warranty Limited
Package Quantity 1/Each
