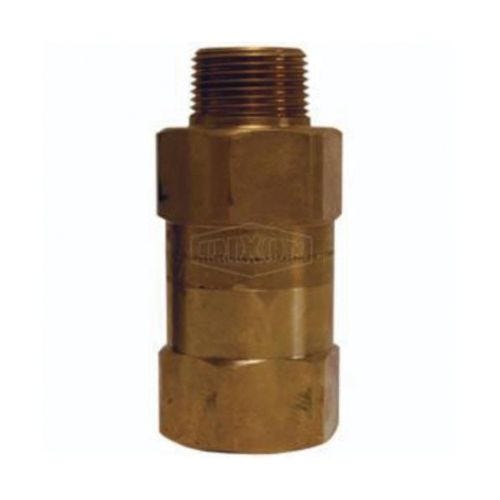

Dixon® Scvj6 Safety Check Valve, 3/4 In, Mnpt X Fnpt, 132 To 148 SCFM, Brass Body

Manufacturer # SCVJ6
Generally in stock, call for availability
$0.00
$82.50
HSI
HOS23395
UPC #:089109867516
Dixon® Scvj6 Safety Check Valve, 3/4 In, Mnpt X Fnpt, 132 To 148 SCFM, Brass Body is available to buy in increments of 1
DESCRIPTION
Dixon® Safety Check Valve, 3/4 In Nominal, Mnpt X Fnpt, 350 Psi, 250 Deg F, 132 To 148 Scfm, Brass Body, 3-9/16 In L
Features
  • High flow valve to provide optimum performance
  • Controls excess air flow (scfm) in only one direction
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
  • Conforms to OSHA regulation 1926.302 (B) (7) requiring a safety device at the source of the air supply and at branch air lines
  • Not for use in applications where 100% of the available air is required, i.e. sand blast, pile driving rigs, expansion joint blow down pipes, etc
  • Does not prevent backflow
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • 132 to 148 scfm at 90 psi
PRODUCT SPECIFICATIONS
More Information
Weight (Lb.) 0.8100
Weight 0.81 lb
UPC 089109867516
Manufacturer Dixon Valve & Coupling
Standard Approvals OSHA 1926.302
Manufacturer Part Number SCVJ6
Brand Name DIXON®
Flow Rate 132 to 148 scfm
Temperature Rating 250 deg F
Body Material Brass
End Style MNPT x FNPT
Dimensions 3-9/16 in L
Nominal Size 3/4 in
Pressure Rating 350 psi
