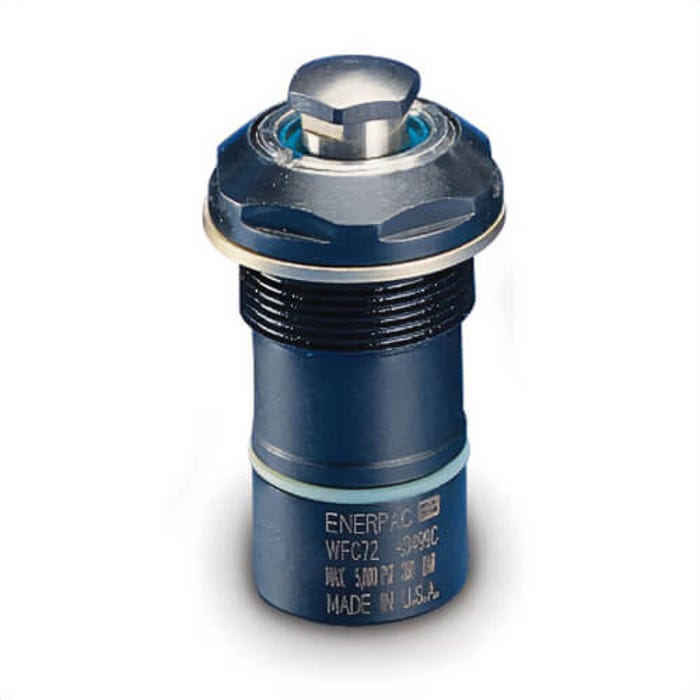

Enerpac® WFC72 Cartridge Style Work Support, 0.39 in Stroke Length, 1,650 lb, Hydraulic Advance Function
Manufacturer #WFC72
Call for availability
List Price:
$485.00
$485.00
Quantity Break Pricing may apply in the cart
HSI
WFC72-10764
UPC #:662005100972
Enerpac® WFC72 Cartridge Style Work Support, 0.39 in Stroke Length, 1,650 lb, Hydraulic Advance Function is available to buy in increments of 1
Product Overview
Enerpac® work support, cartridge style, WF series, 0.39 in stroke length, 1,650 lb maximum force, function: hydraulic advance, 40 in³/min maximum oil flow, 3.22 in extended height, 2.83 in retracted height, M33 x 1.5 body thread, M10 x 1.5 plunger thread, 700 to 5,000 psi pressure.
Features
- Plunger stays retracted until pressure is applied allowing unobstructed loading
- Low pressure lockup capability enables the use of machine tool hydraulic systems
- High rated support capacities allow for more compact fixture design
- Corrosion-resistant materials, compatible with most coolants and environments
- Threaded and manifold air vent ports allow fixturing that prevents coolants and debris from being ingested into the mechanism
- Minimized deflection increases machining accuracy
- Multiple mounting configurations for design flexibility
- Support force and clamping force must be matched
- Support force should be at least 150% of clamping force
- Do not exceed maximum flow rates to avoid premature lockup
- Always center load over work support
- Enerpac® work supports provide either additional non-fixed location points to the clamps or support to larger or thin section workpiece components, always in order to minimize workpiece deflection during machining
Specifications
| Manufacturer Part Number | WFC72 |
|---|---|
| Manufacturer | Enerpac Tool Group |
| Brand Name | ENERPAC |
| UPC | 662005100972 |
| Length (in) | 4 |
| Width (in) | 6 |
| Height (in) | 4 |
| Warranty | Limited |
| Package Quantity | 1/Each |
