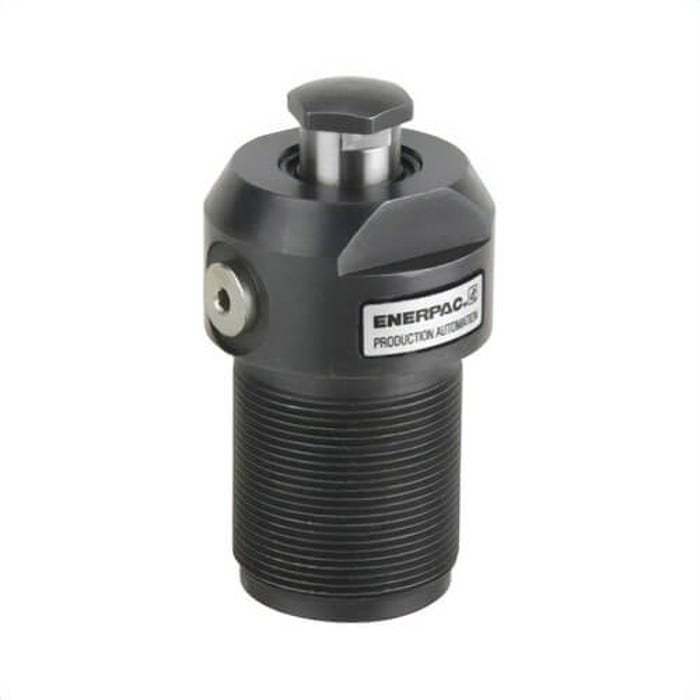

Enerpac® WFT71 Threaded Work Support, 0.4 in Stroke Length, 1,650 lb, Hydraulic Advance Function

ENERPAC

Manufacturer #WFT71

Call for availability

Be the first to review this product

List Price: $428.00

$428.00

Quantity Break Pricing may apply in the cart

HSI

WFT71-10764

UPC #:662005311392

Enerpac® WFT71 Threaded Work Support, 0.4 in Stroke Length, 1,650 lb, Hydraulic Advance Function is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Enerpac® work support, threaded, WF series, 0.4 in stroke length, 1,650 lb maximum force, function: hydraulic advance, #2 port, 40 in³/min maximum oil flow, 3.53 in extended height, 3.13 in retracted height, 1-3/8-18 UNEF body thread, M10 x 1.5 plunger thread, 700 to 5,000 psi pressure.

Features

Plunger stays retracted until pressure is applied allowing unobstructed loading
Low pressure lockup capability enables the use of machine tool hydraulic systems
High rated support capacities allow for more compact fixture design
Corrosion-resistant materials, compatible with most coolants and environments
Threaded and manifold air vent ports allow fixturing that prevents coolants and debris from being ingested into the mechanism
Minimized deflection increases machining accuracy
Multiple mounting configurations for design flexibility
Support force and clamping force must be matched
Support force should be at least 150% of clamping force
Do not exceed maximum flow rates to avoid premature lockup
Always center load over work support
Enerpac® work supports provide either additional non-fixed location points to the clamps or support to larger or thin section workpiece components, always in order to minimize workpiece deflection during machining

Specifications

More Information
Manufacturer Part Number	WFT71
Manufacturer	Enerpac Tool Group
Brand Name	ENERPAC
UPC	662005311392
Length (in)	5
Width (in)	5
Height (in)	4
Warranty	Limited
Package Quantity	1/Each
