Harrington® SHB010-20 Ultra Low Headroom Trolley Hoist, 1 ton Load, 20 ft Lifting Height, 4-1/2 in Between Hooks, 1.1 in Hook Opening, 64 lb Rated

Manufacturer #SHB010-20

Call for availability

$9,547.26

Quantity Break Pricing may apply in the cart

HSI

SHB010-20-11188

Harrington® SHB010-20 Ultra Low Headroom Trolley Hoist, 1 ton Load, 20 ft Lifting Height, 4-1/2 in Between Hooks, 1.1 in Hook Opening, 64 lb Rated is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

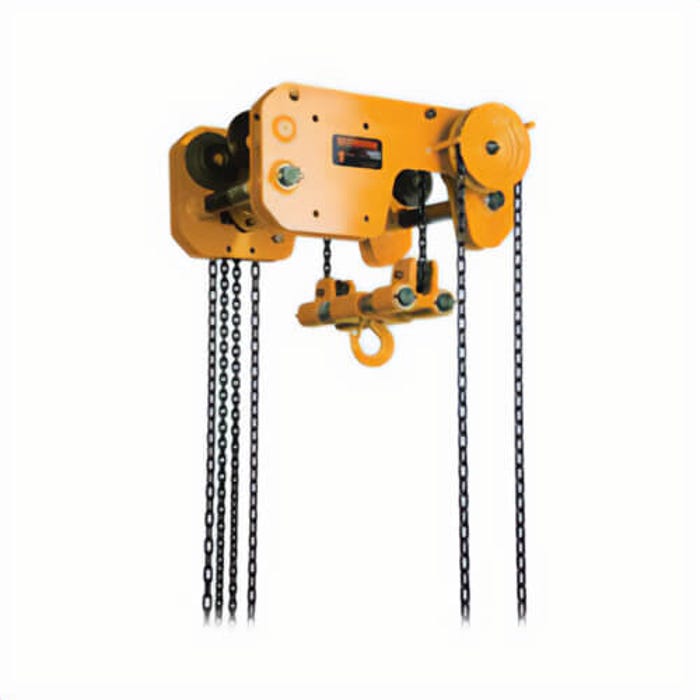

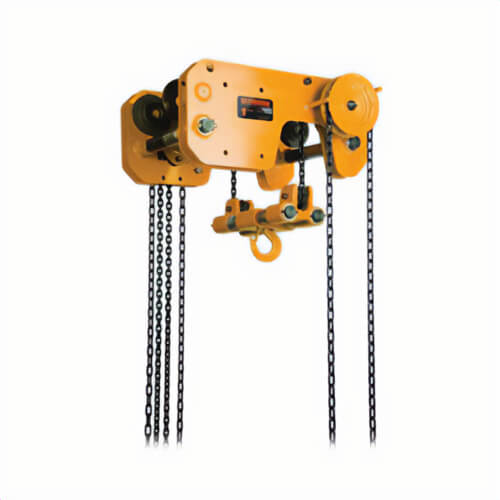

Harrington® SHB trolley hoists combine our industrial grade CB hand chain hoist less slip clutch with a unique permanently attached hand geared trolley. This low profile configuration is ideal, for use in limited space applications.

Features

1 ton to 10 ton capacity
Ultra-low headroom design for maximum hook travel
All-steel construction for hoist durability
Cast trolley wheels and steel side plates for heavy-duty applications
Flanged trolley wheels allow for smooth travel on both S and W beams
Efficient hoist drive train minimizes effort required to operate
Maintenance-free sealed trolley ball bearings are lubed-for-life and offer smooth movement with low friction and long life
Reliable hoist braking with double enclosed brake cover that keeps out rain, dust and dirt
Grade 100 heat-treated manganese alloy load chain resists abrasion and wear
Weston brake type

Specifications

More Information
Manufacturer Part Number	SHB010-20
Manufacturer	Harrington Hoists, Inc
Brands	HARRINGTON
Length (in)	27
Width (in)	26
Height (in)	19
Product Type	Bare Tool
Standard Approvals	ASME B30.16 Requirements
Type	Ultra Low Headroom
Load Capacity	1 ton
Hook Opening	1.1 in
Lifting Height	20 ft
Package Quantity	1/Each
